Fasco

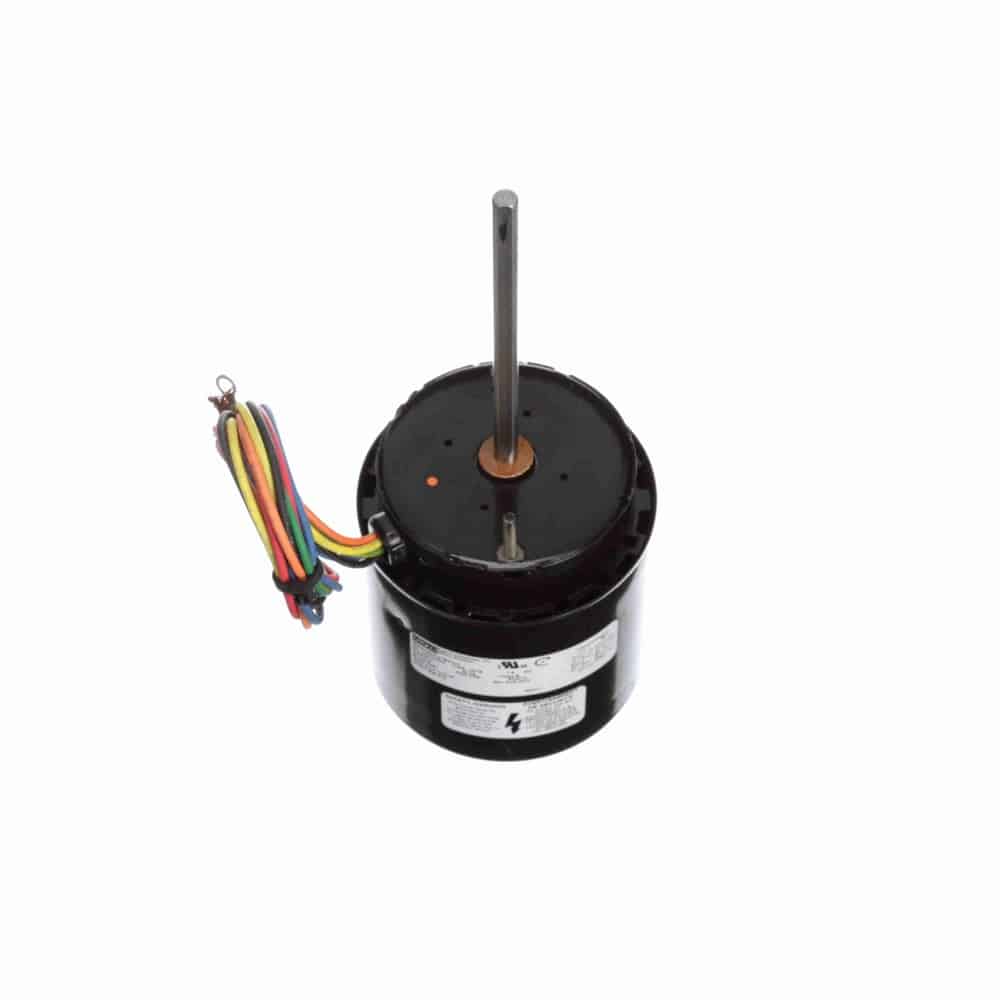

1/15HP ShP 3.3″ 3000 CWSE 115/230V
Mfr # D091 | Wright’s # FAS D091
1/15HP Ventilation Motor, 1 Phase, 3.3″ Frame, 3000 RPM, 1 Speed, Shaded Pole, 115/230V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand Fasco
Mfr # D091
Wright's # FAS D091
Country of Origin MEX
Specifications
C Dim 9.55"
Electrical Type Shaded Pole
Enclosure TEFC
Frame 3.3"
Frequency 60 Hz
HP 0.07 HP
HP2 1/15 HP
Insulation Class B
kW 0.05kW
Material Steel
Max Ambient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 2.0/1.0
Rated Voltage 115/230
Rotation Clockwise Shaft End
RPM 3000
Service Factor 1
Shaft Diameter 0.312"
Starting Method
Description
Fan and Blower Duty Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Totally Enclosed, Internal Fan, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
5/16″ Diameter Shaft with Flatϼ” Leads
Extended Studs, Belly Band Mount (Belly Band Not Included)
