Fasco
1/70HP ShP 3.3″ 3000 CWSE 115V DS
Mfr # D032A | Wright’s # FAS D032A

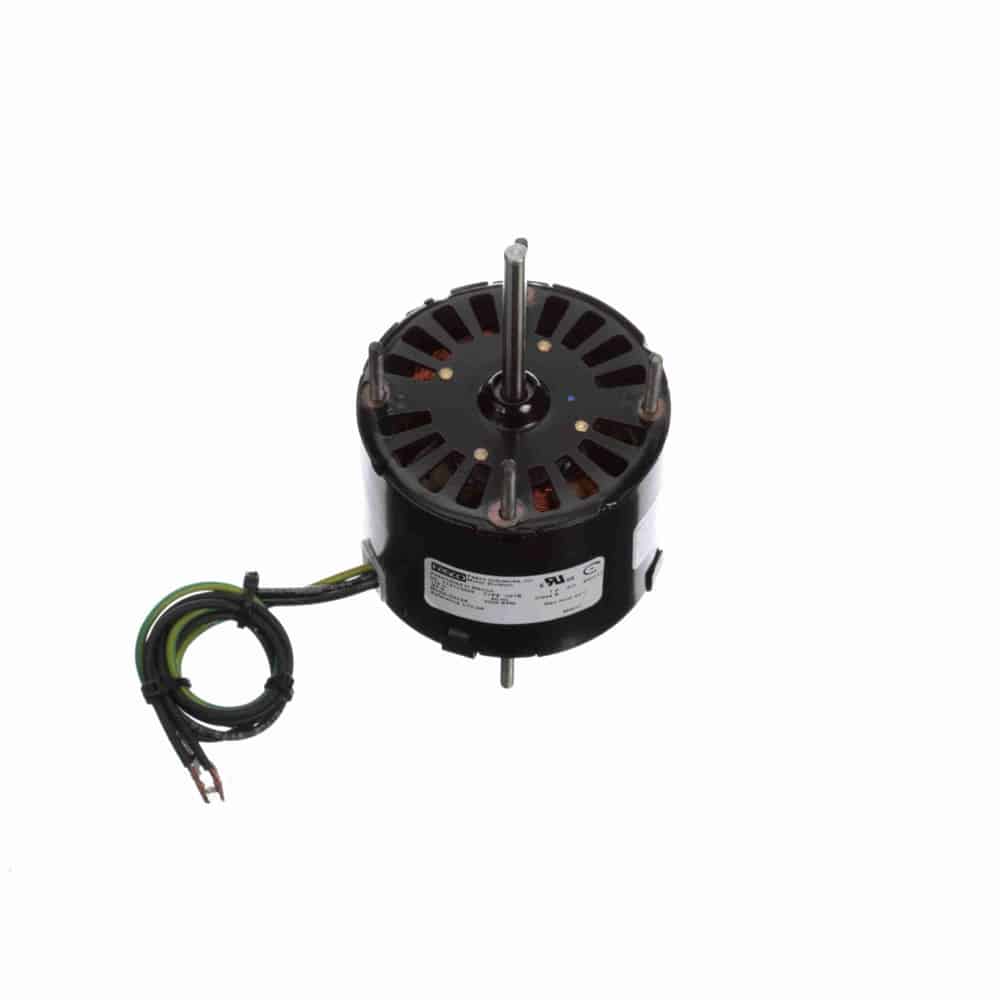

1/70HP Ventilation Motor, 1 Phase, 3.3″ Frame, 3000 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
$82.39
Product Information
Brand
Fasco
Mfr #
D032A
Wright's #
FAS D032A
Country of Origin
MEX
Specifications
C Dim
5.33"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.01 HP
HP2
1/70 HP
Insulation Class
B
kW
0.01kW
Material
Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.65
Rated Voltage
115
Rotation
Clockwise Shaft End
RPM
3000
Service Factor
1
Shaft Diameter
0.25"
Starting Method
Description
Fan and Blower Duty Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Double Shaft with Flatϴ” Leads
Extended Studs Shaft End and Lead End, Belly Band Mount (Belly Band Not Included)
120V
