Elco

5W ShP 1550 CWLE 115V 0.2A

Name: 5W ShP 1550 CWLE 115V 0.2A
Brand: Elco
SKU: 27534
Price: 35.74 USD
Availability: InStock

Mfr # EC5W230 | Wright’s # ELC EC5W230

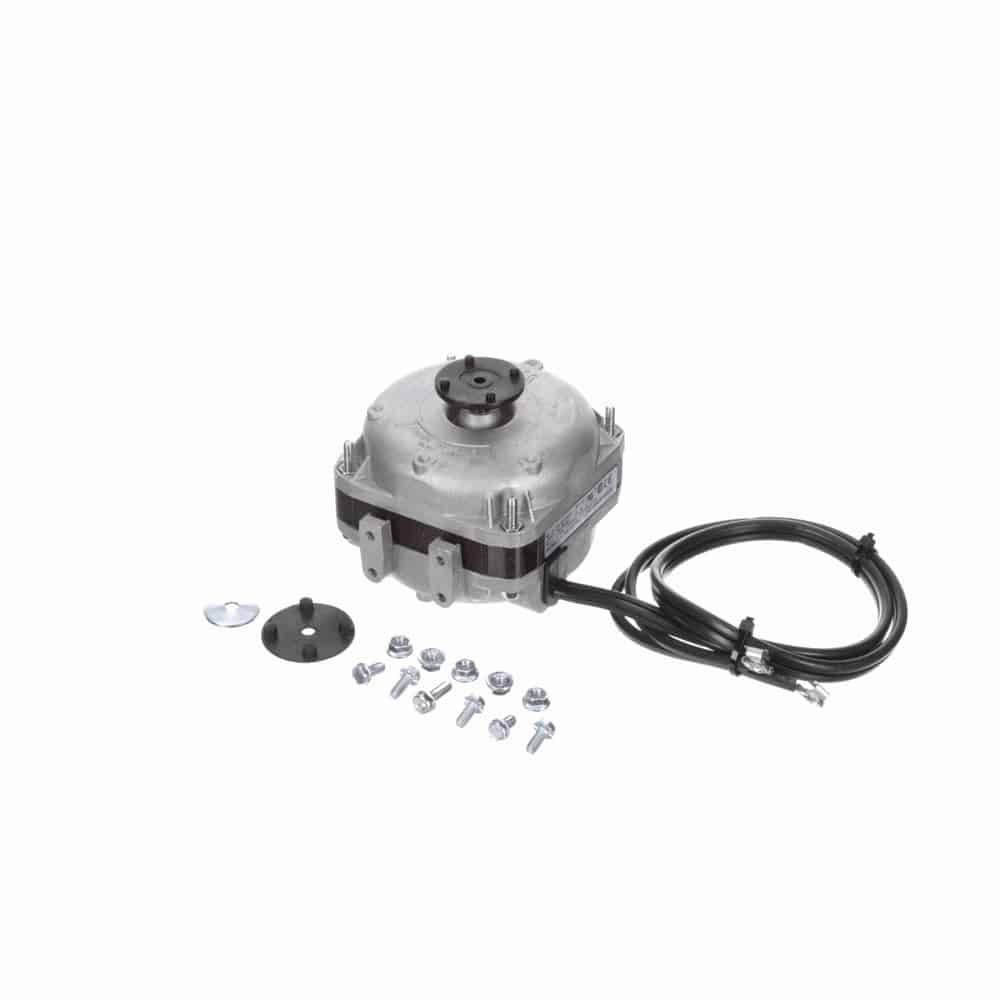

5 Watt Refrigeration Motor, 1 Phase, Unit Bearing Frame, 1550 RPM, Shaded Pole, 115V, TEAO Enclosure, Aluminum

4 in stock

Sign in to access special pricing and availability.

Contact Us For Pricing

Product Information

Brand Elco

Mfr # EC5W230

Wright's # ELC EC5W230

Specifications

C Dim 2.8"

Electrical Type Shaded Pole

Enclosure TEAO

Frame UNIT BEARING

Frequency 60 Hz

Insulation Class B

Material Aluminum

Max Ambient 40°C

Number of Poles 4

Overload Protection Thermostat

Phase 1

Rated Current 0.2

Rated Voltage 115

Rotation Counterclockwise Shaft End

RPM 1550

Shaft Diameter 0.275"

Speed 1550

Starting Method

Watt 5

Description

ELCO – Refrigeration Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Totally Enclosed Air OVER
Class B Insulation
Sleeve Bearing
Shaft with 4 End-StudsϽ-23″ Leads with Ring Terminals
One Foot, Front Shroud, 3 Tapped Rear Holes
5 Watt
120V
1800RPM

Documents

Data Sheet

5W ShP 1550 CWLE 115V 0.2A
