Century

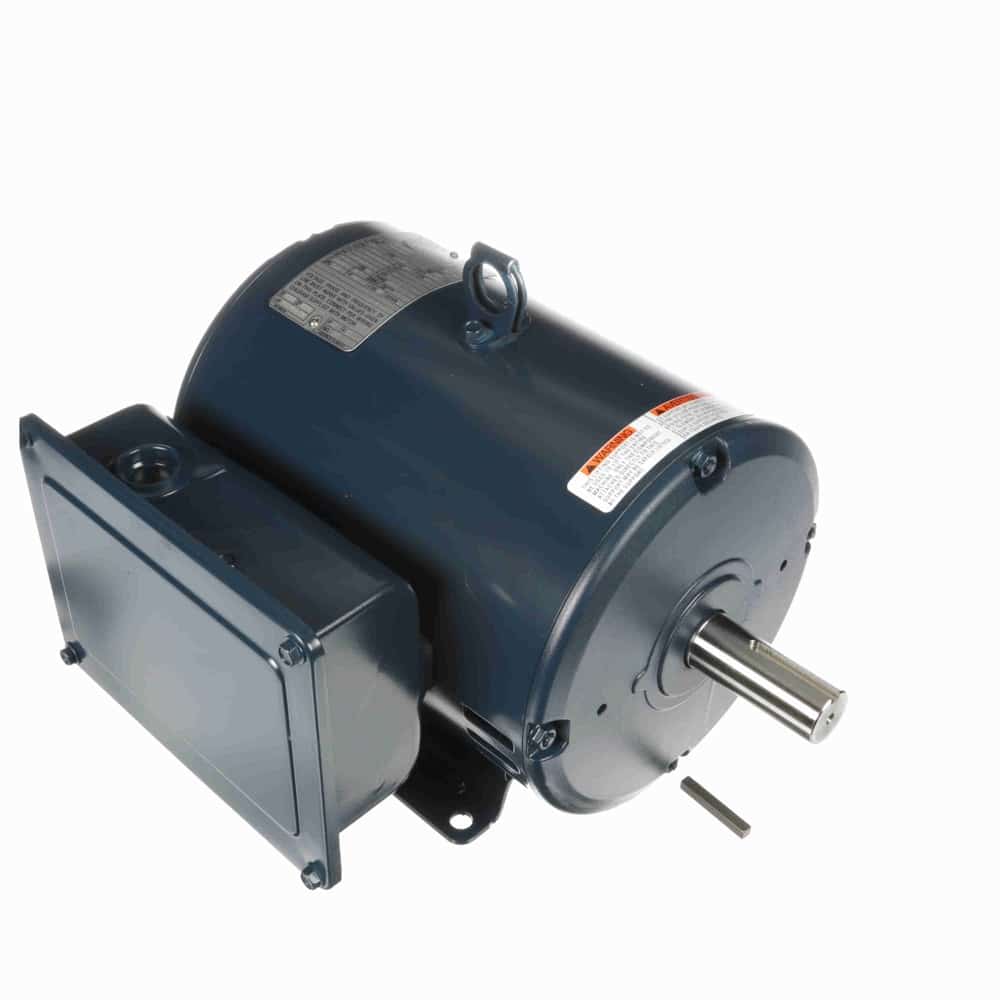

3HP 1PH 182T 2P ODP 3500 115/208-230V
Mfr # V210M2 | Wright’s # CEN V210M2
3HP 1-Phase General Purpose Motor, 1 Phase, 182T Frame, 3500 RPM, 1 Speed, Capacitor Start, 115/208-230V, ODP Enclosure
$1,226.06
You save (%)
Product Information
Brand
Century
Mfr #
V210M2
Wright's #
CEN V210M2
Country of Origin
MEX
Specifications
C Dim
14.21"
Electrical Type
Capacitor Start
Enclosure
ODP
Frame
182T
Frequency
60 Hz
HP
3 HP
HP2
3 HP
Insulation Class
F
kW
2.2kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
32/17.1-16.1
Rated Voltage
115/208-230
Rotation
Counterclockwise
RPM
3500
Service Factor
1.15
Shaft Diameter
1.125"
Speed
3500
Starting Method
Description
Heavy gauge steel frame and base
3HP 1-Phase General Purpose Motor, 1 Phase, 182T Frame, 3500 RPM, 1 Speed, Capacitor Start, 115/208-230V, ODP Enclosure
