Century
1/8HP PSC 42Y TE 1075 115V 4uF-inc
Mfr # U6521 | Wright’s # CEN U6521

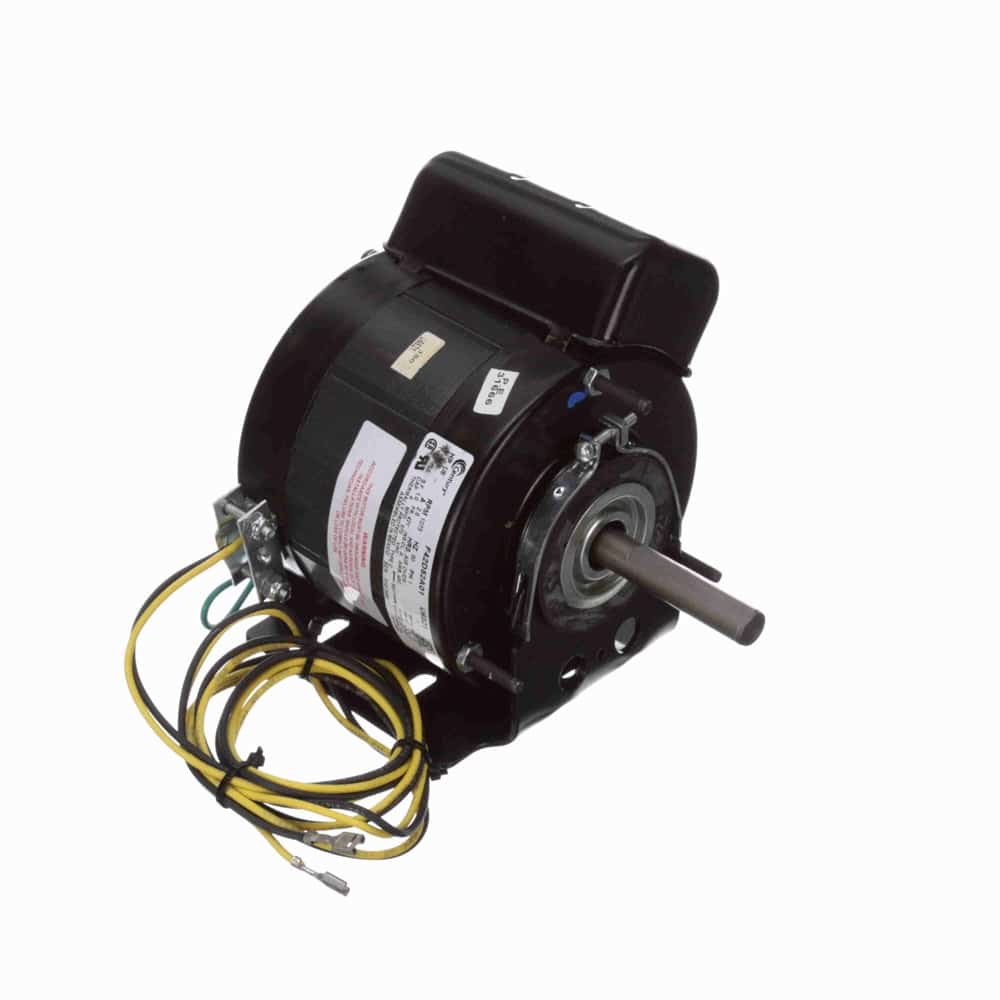

1/8HP Unit Heater Motor, 1 Phase, 42Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
U6521
Wright's #
CEN U6521
Specifications
C Dim
7.3"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
42Y
Frequency
60 Hz
HP
0.13 HP
HP2
1/8 HP
Insulation Class
A
kW
0.1kW
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
2.6
Rated Voltage
115
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
Unit Heater Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatТ” Power Leads with Female Spade Terminal
Extended Studs Shaft End, Resilient Base
1/8HP Unit Heater Motor, 1 Phase, 42Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
