Century
1/15HP ShP 42Y TE 1050 CWSE 115V
Mfr # U6430 | Wright’s # CEN U6430

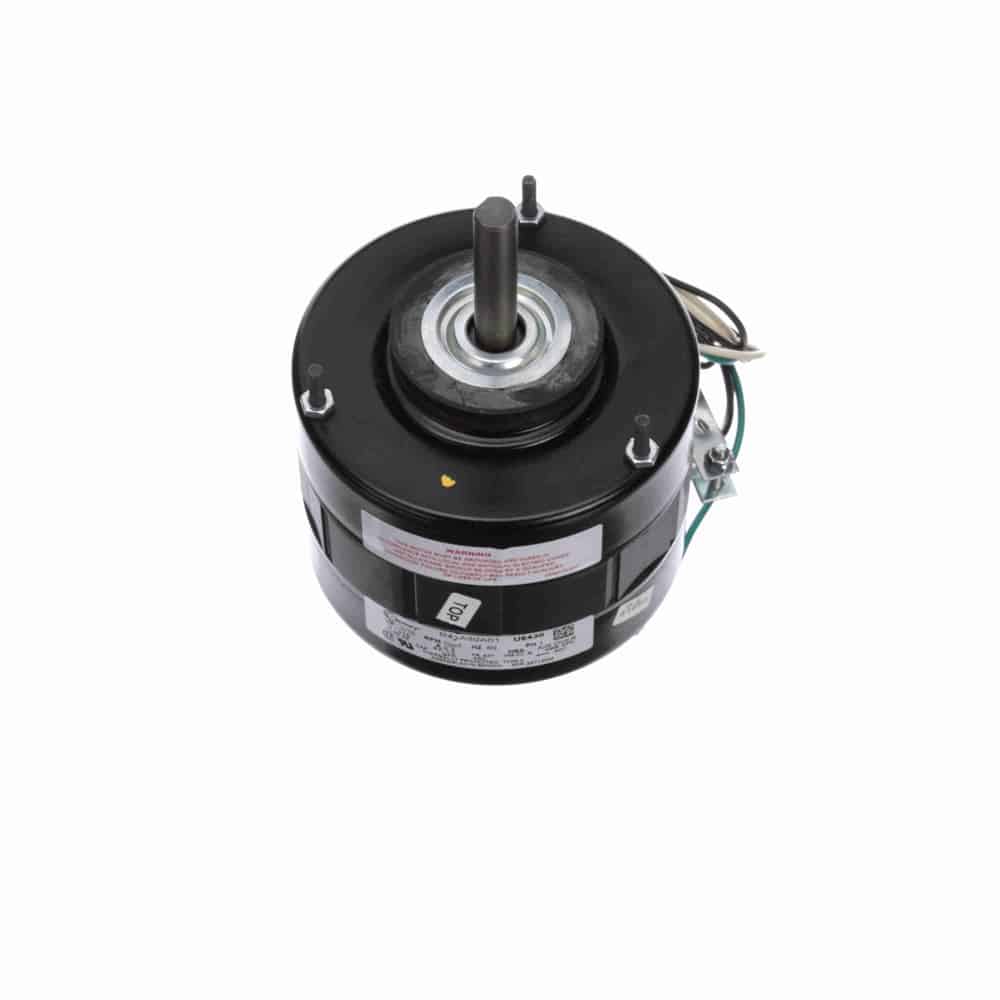

1/15HP Unit Heater Motor, 1 Phase, 42Y Frame, 1050 RPM, 1 Speed, Shaded Pole, 115V, TEAO Enclosure
$230.63
Product Information
Brand
Century
Mfr #
U6430
Wright's #
CEN U6430
Country of Origin
MEX
Specifications
C Dim
6.79"
Electrical Type
Shaded Pole
Enclosure
TEAO
Frame
42Y
Frequency
60 Hz
HP
0.07 HP
HP2
1/15 HP
Insulation Class
B
kW
0.05kW
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
3.3
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1050
Service Factor
1
Shaft Diameter
0.5"
Speed
1050
Starting Method
Description
Unit Heater Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЋ” Leads
Extended Studs Shaft End, Resilient Mounting Rings Shaft End and Lead End
1/15HP Unit Heater Motor, 1 Phase, 42Y Frame, 1050 RPM, 1 Speed, Shaded Pole, 115V, TEAO Enclosure
