Online ordering is temporarily unavailable as we improve our systems. In the meantime, please call your nearest Wright’s Supply location and our team will assist you with your order.
Century

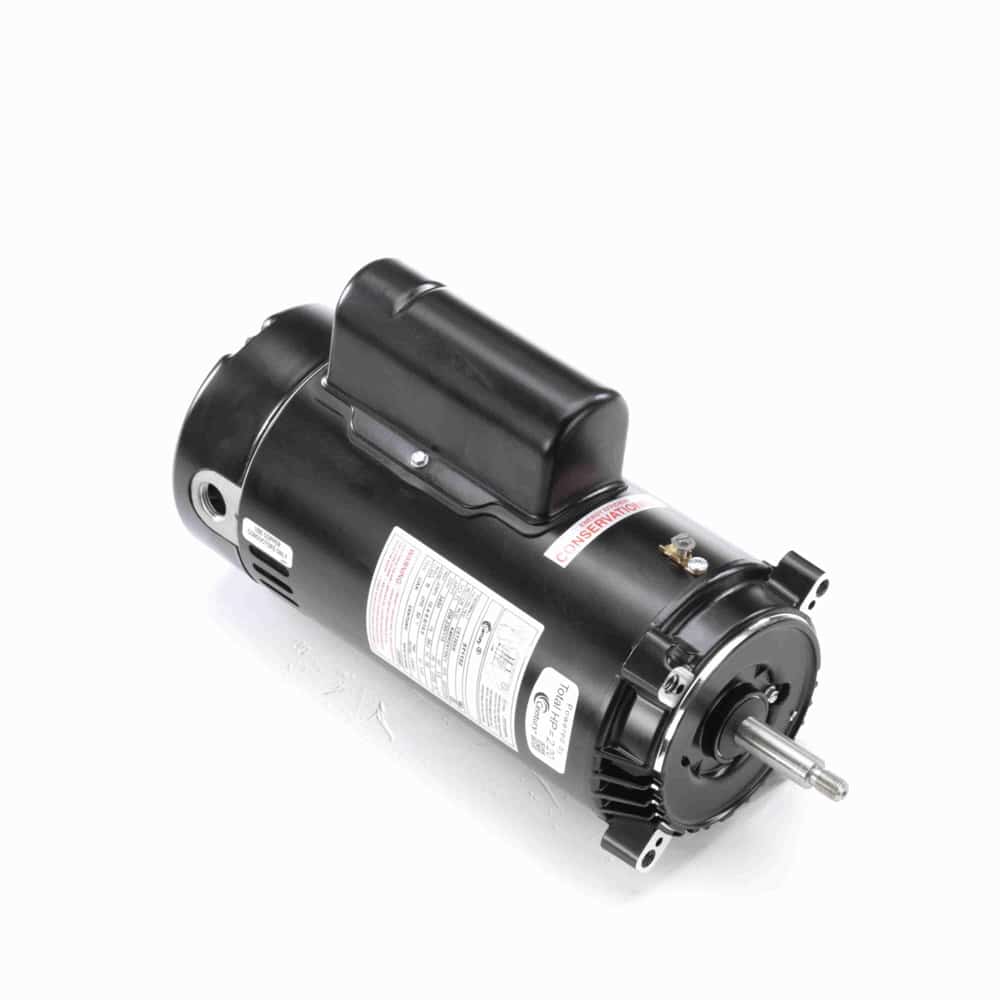

1.5HP 1PH 56J 2P ODP 3450 115/208-230V AOL UL1081
Mfr # ST1152 | Wright’s # CEN ST1152
1.5HP Pool & Spa Pump Motor, 1 Phase, 56J Frame, 3450 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/208-230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
ST1152
Wright's #
CEN ST1152
Country of Origin
THA
Specifications
C Dim
15.19"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
ODP
Frame
56J
Frequency
60 Hz
HP
1.5 HP
HP2
1.5 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
50°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
10.4-9.8/19.6
Rated Voltage
115/208-230
Rotation
Counterclockwise Pump End
RPM
3450
Service Factor
1.47
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
Sealed Ball Bearings
Capacitor Start-Capacitor Run
Sealed Switch Design
50°C Ambient
303 Stainless Shaft
UL 1081 Design
304 Bearing Shaft End
Threaded Shaft
Energy Efficient
1.5HP Pool & Spa Pump Motor, 1 Phase, 56J Frame, 3450 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/208-230V, ODP Enclosure
