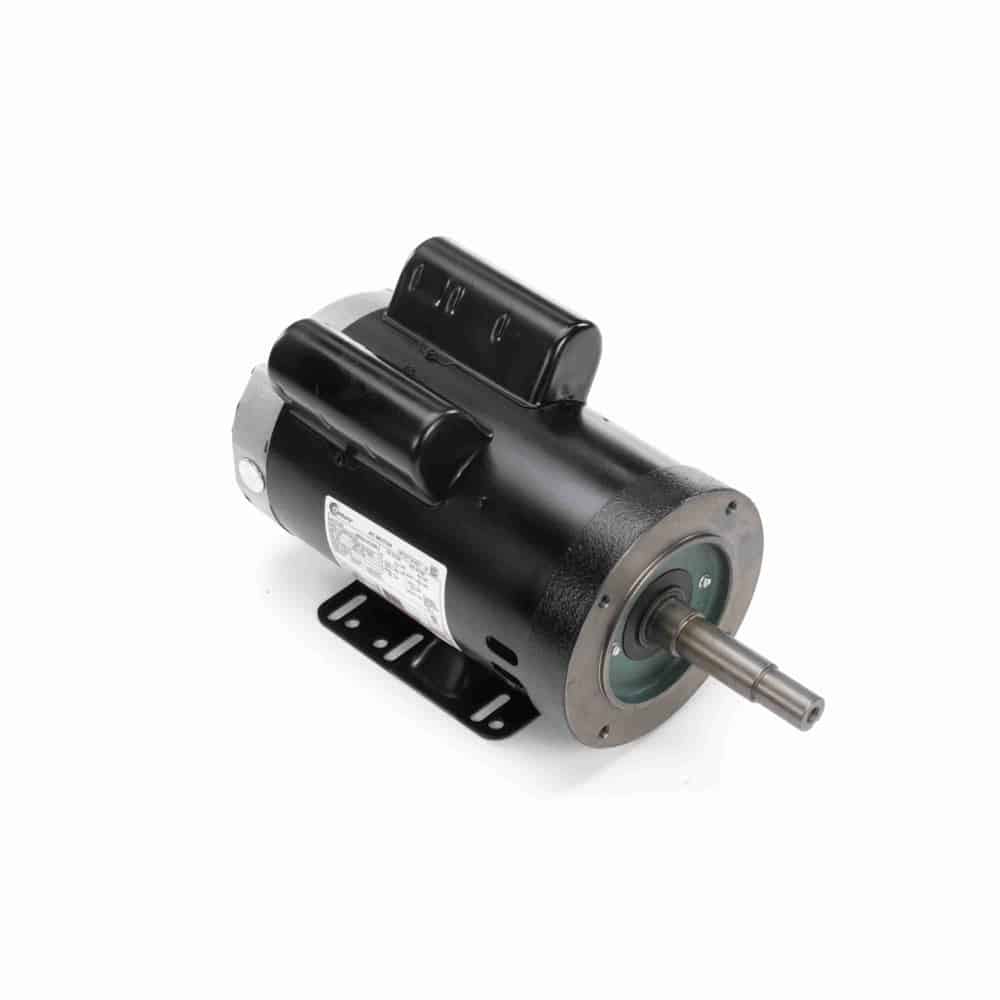

1.5HP 1PH 145JM 4P ODP 1725 115/230V
Century

1.5HP 1PH 145JM 4P ODP 1725 115/230V

Mfr # P123 | Wright’s # CEN P123

1.5HP Close-Coupled Pump Motor, 1 Phase, 145JM Frame, 1725 RPM, Speed, Capacitor Start, Capacitor Run, Single Or Dual Voltage, 115/230V, ODP Enclosure

Out of stock

Contact Us For Pricing

Product Information

Brand Century
Mfr # P123
Wright's # CEN P123
Country of Origin MEX

Specifications

C Dim 16.29"
Electrical Type Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure ODP
Frame 145JM
Frequency 60 Hz
HP 1.5 HP
HP2 1.5 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 4
Overload Protection No Protection
Phase 1
Rated Current 7.5/15.0
Rated Voltage 115/230
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 1.156"
Speed 1725
Starting Method

Description

UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Suitable for use on a VFD, 10:1 variable torque and 2:1 constant torque.
Class F insulation(as noted) protects motor for a maximum temperature rating.
1.15 service factor on sinewave, 1.0 service factor on IGBT power.
Double sealed ball bearings mechanically locked on shaft end.

1.5HP Close-Coupled Pump Motor, 1 Phase, 145JM Frame, 1725 RPM, Speed, Capacitor Start, Capacitor Run, Single Or Dual Voltage, 115/230V, ODP Enclosure
