Century

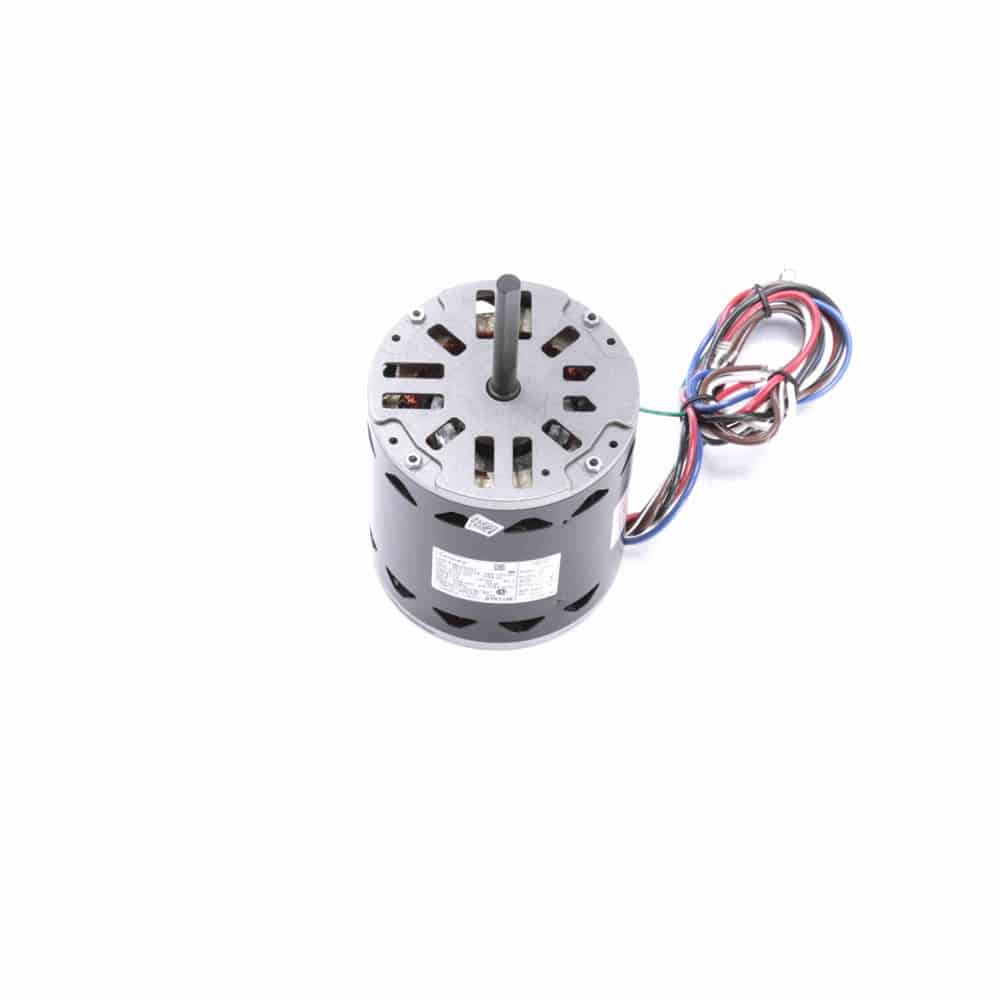

1HP PSC 48Y ODP 3spd 1075 CCWSE 115V 15uF OEM
Mfr # OYK1106 | Wright’s # CEN OYK1106
1HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 115V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OYK1106
Wright's #
CEN OYK1106
Specifications
C Dim
9.36"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
48Y
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
12.9
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-440 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЅ” Leads with Female Spade Terminal
Belly Band Mount (Belly Band Not Included)
1HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 115V, ODP Enclosure
