Century

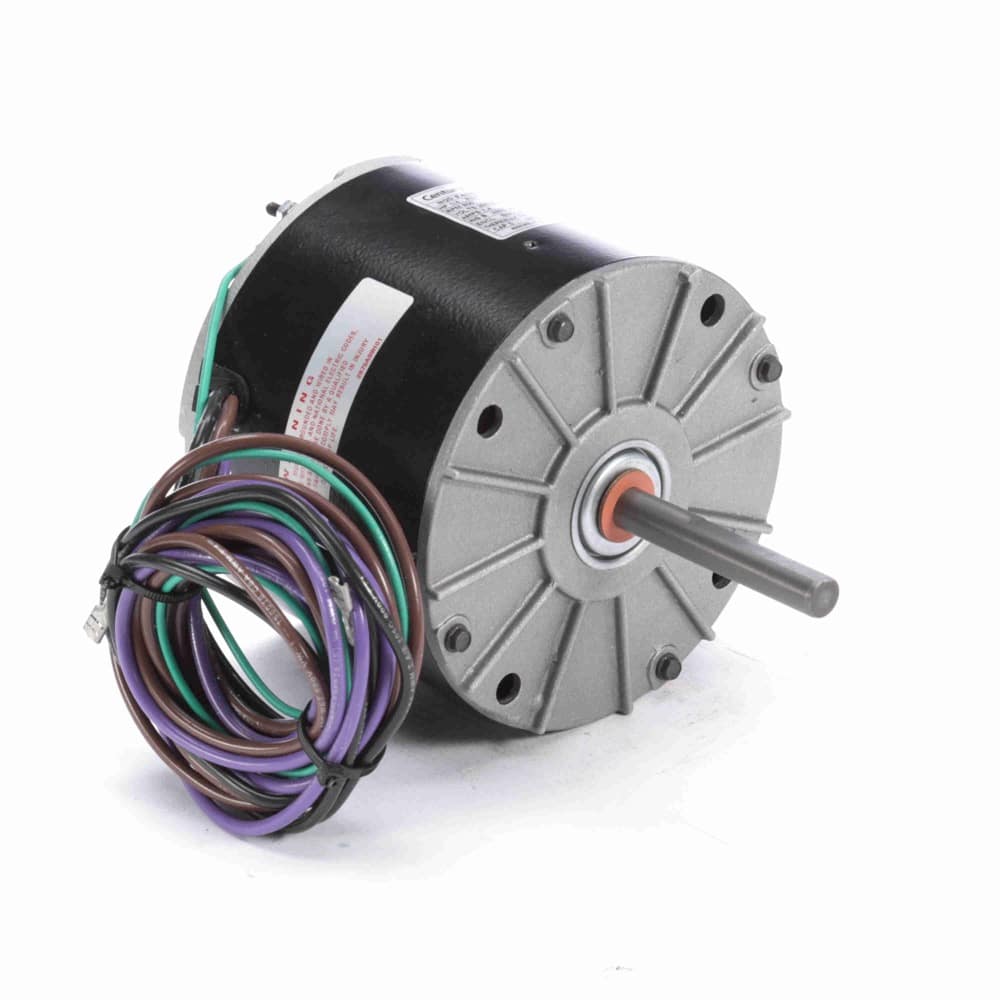

1/4HP PSC 48Y TE 850 CCWSE 208-230V 5uF OEM
Mfr # OYK1028 | Wright’s # CEN OYK1028
1/4HP OEM Replacement Motor, 1 Phase, 48Y Frame, 850 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OYK1028
Wright's #
CEN OYK1028
Country of Origin
IND
Specifications
C Dim
7.98"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
50 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
8
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.4
Rated Voltage
208-230
Rotation
Clockwise Lead End
RPM
850
Service Factor
1
Shaft Diameter
0.5"
Speed
850
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2″ Diameter Shaft with Flatв” Lead with Female Spade Terminal, 66″ Leads with Female Spade Terminals
Extended Studs Lead End, Vertical Shaft Down
1/4HP OEM Replacement Motor, 1 Phase, 48Y Frame, 850 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
