Century

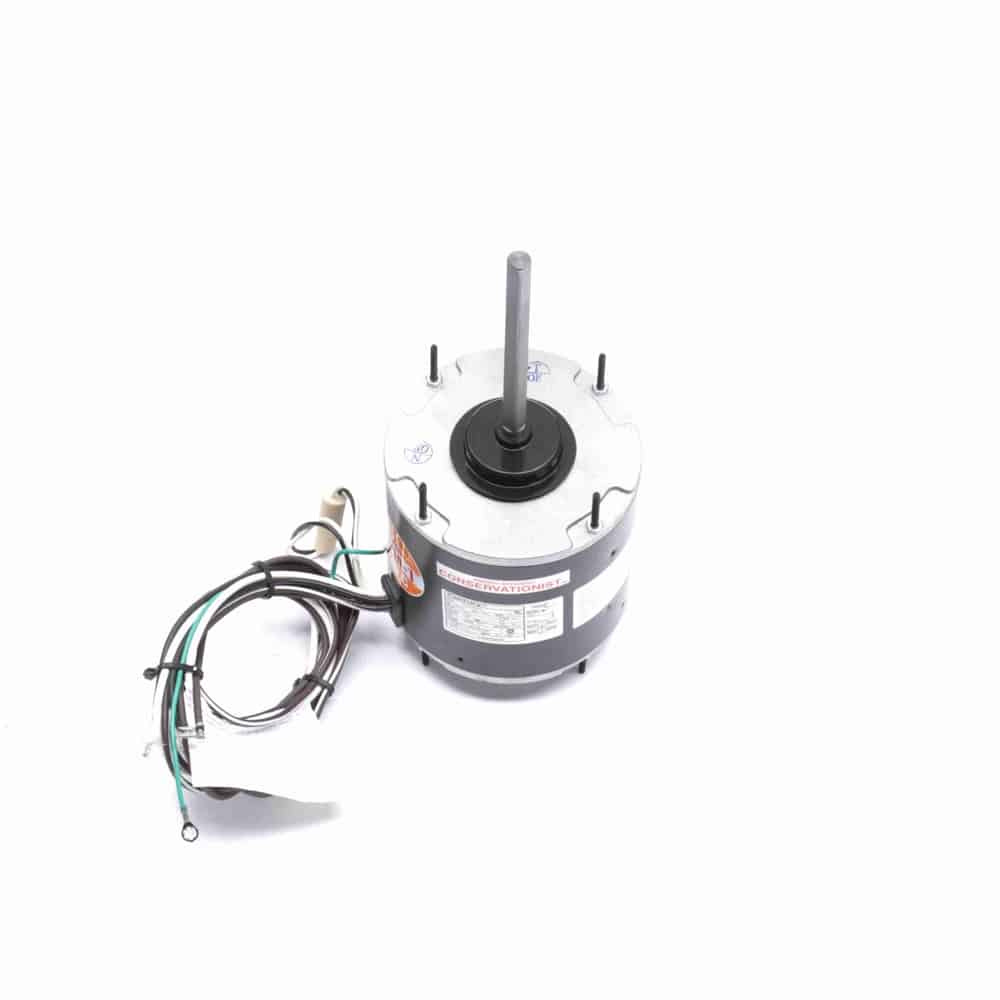

1/3HP PSC 5.6″ TE 825 460V 5uF CF
Mfr # ORM4688BF | Wright’s # CEN ORM4688BF
1/3-1/8HP Condenser Fan Motor, 1 Phase, 48 Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 460V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Sub-Brand
4-in-1®
Mfr #
ORM4688BF
Wright's #
CEN ORM4688BF
Country of Origin
IND
Specifications
C Dim
12.62"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48
Frequency
60 Hz
HP
0.33 HP
HP2
1/3-1/8 HP
Insulation Class
F
kW
0.25kW
Material
Rolled Steel
Max Ambient
70°C
Number of Poles
8
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1
Rated Voltage
460
Rotation
Reversible
RPM
825
Service Factor
1
Shaft Diameter
0.5"
Speed
825
Starting Method
Description
4-in-1 HeatMaster – Condenser Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class F Insulation, 70°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Double FlatИ” Leads
Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)
1/3-1/8HP Condenser Fan Motor, 1 Phase, 48 Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 460V, TEAO Enclosure
