Century

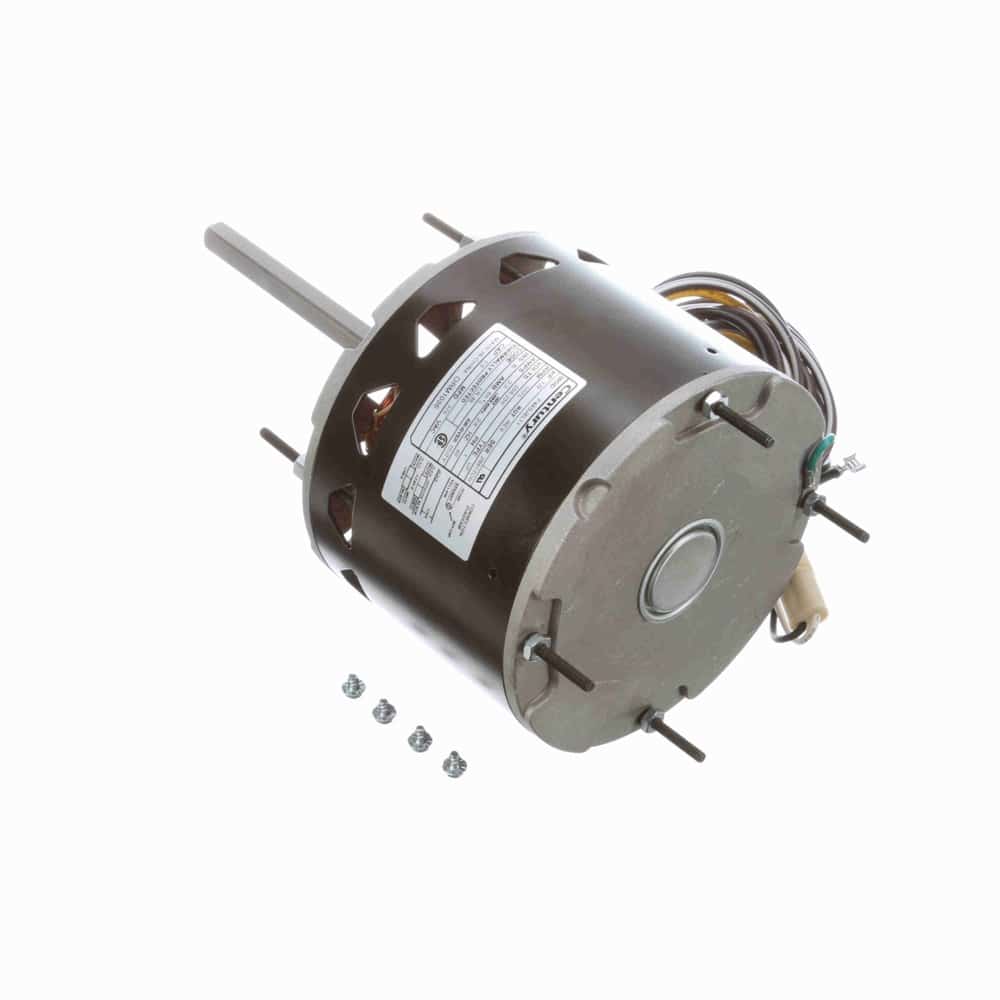

1/3HP PSC 48Y OAO 1075 208-230V 5uF OEM

Name: 1/3HP PSC 48Y OAO 1075 208-230V 5uF OEM
Brand: Century
SKU: 30510
Price: 168.22 USD
Availability: InStock

Mfr # ORM1036 | Wright’s # CEN ORM1036

1/3HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure

Product Information

Brand Century

Mfr # ORM1036

Wright's # CEN ORM1036

Country of Origin CHN

Specifications

C Dim 10.74"

Electrical Type Permanent Split Capacitor

Enclosure OAO

Frame 48Y

Frequency 60 Hz

HP 0.33 HP

HP2 1/3 HP

Insulation Class B

kW 0.25kW

Material Rolled Steel

Max Ambient 60°C

Number of Poles 6

Number of Speeds 1

Overload Protection Automatic

Phase 1

Rated Current 2.2

Rated Voltage 208-230

Rotation Reversible

RPM 1075

Service Factor 1

Shaft Diameter 0.5"

Speed 1075

Starting Method

Description

OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Shaft End End-Frame, Enclosed Lead End End-Frame, Semi-Enclosed Shell, Air Over
Class B Insulation, 60°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Double FlatИ” Power Leads with Female Spade Terminals, 72″ Capacitor Leads with Female Spade Terminals
Extended Studs Shaft End and Lead End, Mounting Holes in Shell

1/3HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure

Documents

Data Sheet

1/3HP PSC 48Y OAO 1075 208-230V 5uF OEM
