Century

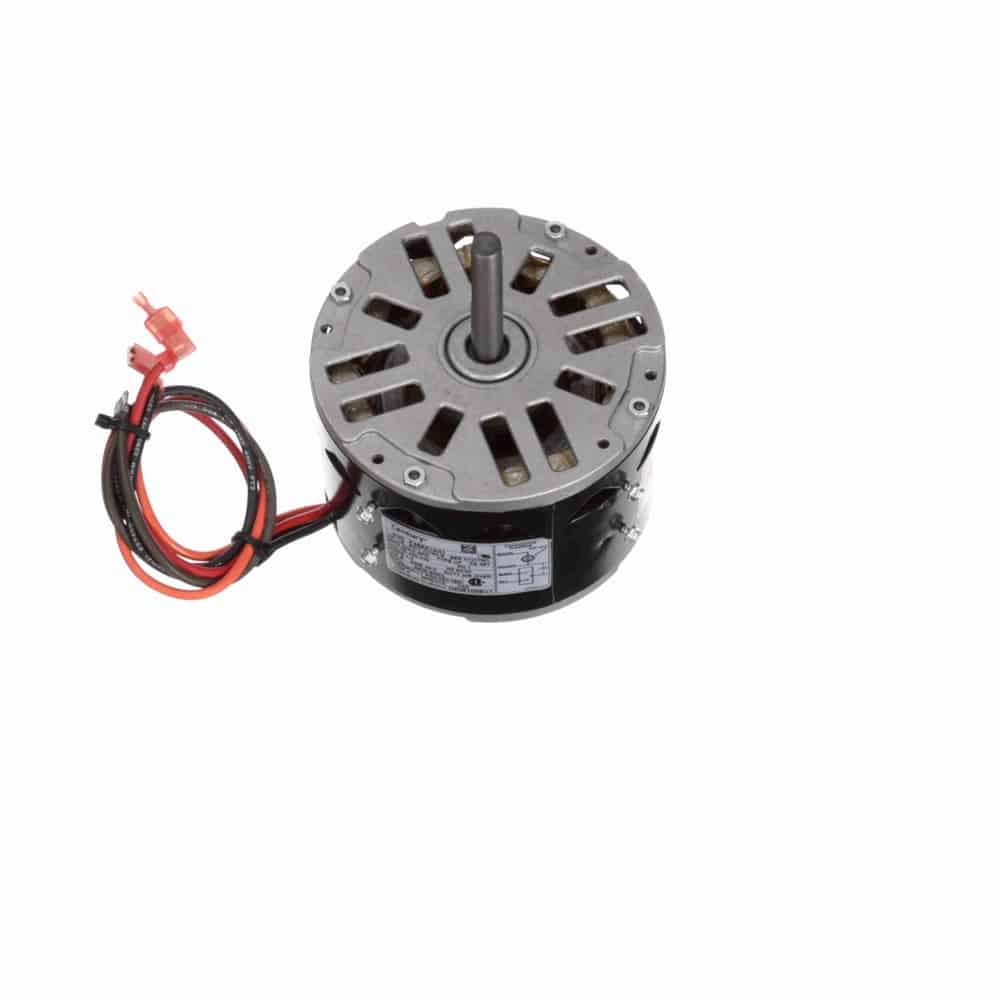

1/8HP PSC 48Y TE 2spd 825 CCWSE 208-230V 5uF OEM
Mfr # ORM1008V1 | Wright’s # CEN ORM1008V1
1/8HP OEM Replacement Motor, 1 Phase, 48Y Frame, 825 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
ORM1008V1
Wright's #
CEN ORM1008V1
Specifications
C Dim
6.54"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.13 HP
HP2
1/8 HP
Insulation Class
B
kW
0.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
8
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
1.4
Rated Voltage
208-230
Rotation
Counterclockwise Lead End
RPM
825
Service Factor
1
Shaft Diameter
0.5"
Speed
825
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Flat϶” Leads with Flag Terminals
Mounting Holes in Shell
1/8HP OEM Replacement Motor, 1 Phase, 48Y Frame, 825 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
