Century

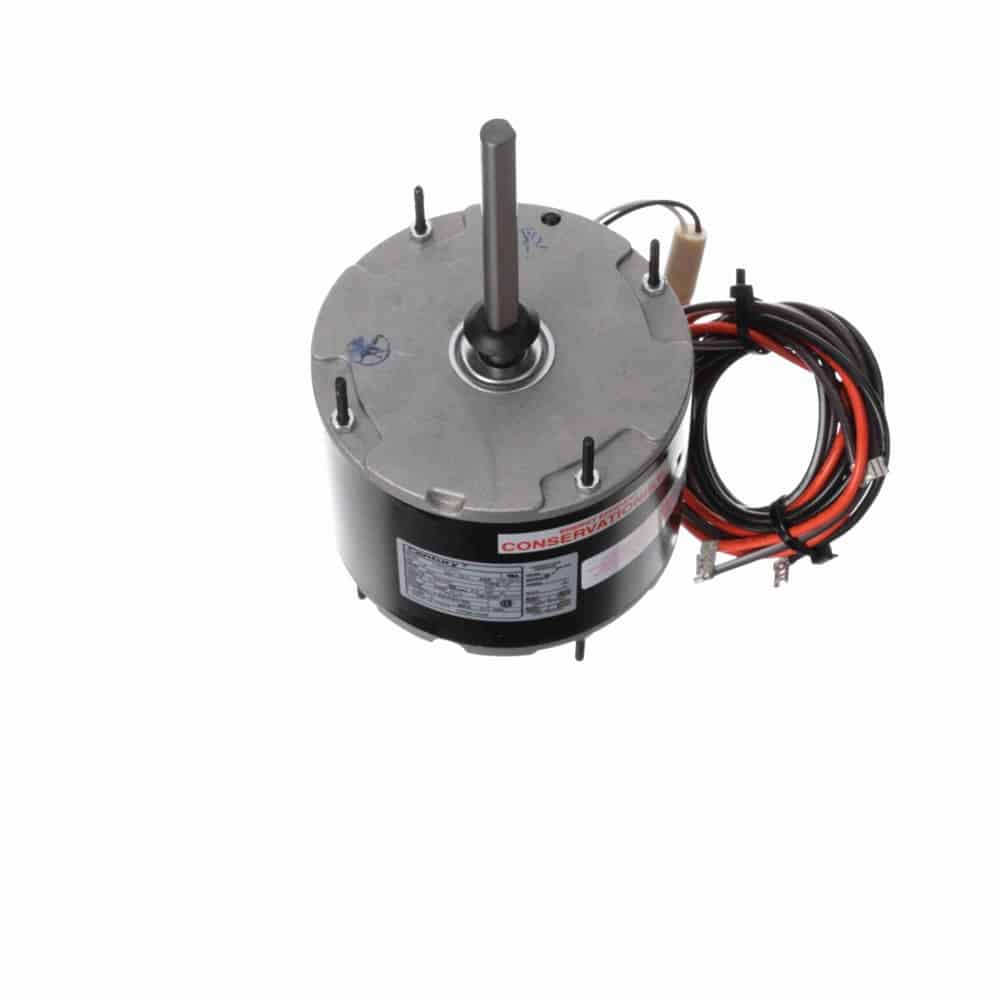

1/8HP PSC 48Y TE 825 208-230V 5uF OEM
Mfr # ORM1008 | Wright’s # CEN ORM1008
1/8HP OEM Replacement Motor, 1 Phase, 48Y Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
ORM1008
Wright's #
CEN ORM1008
Country of Origin
IND
Specifications
C Dim
9.88"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.13 HP
HP2
1/8 HP
Insulation Class
B
kW
0.1kW
Material
Rolled Steel
Max Ambient
50°C
Number of Poles
8
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
0.7
Rated Voltage
208-230
Rotation
Reversible
RPM
825
Service Factor
1
Shaft Diameter
0.5"
Speed
825
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 50°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2″ Diameter Shaft with Double FlatА” Leads with Flag Terminals
Extended Studs Shaft end and Lead End, Mounting Holes in Shell.
1/8HP OEM Replacement Motor, 1 Phase, 48Y Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
