Century

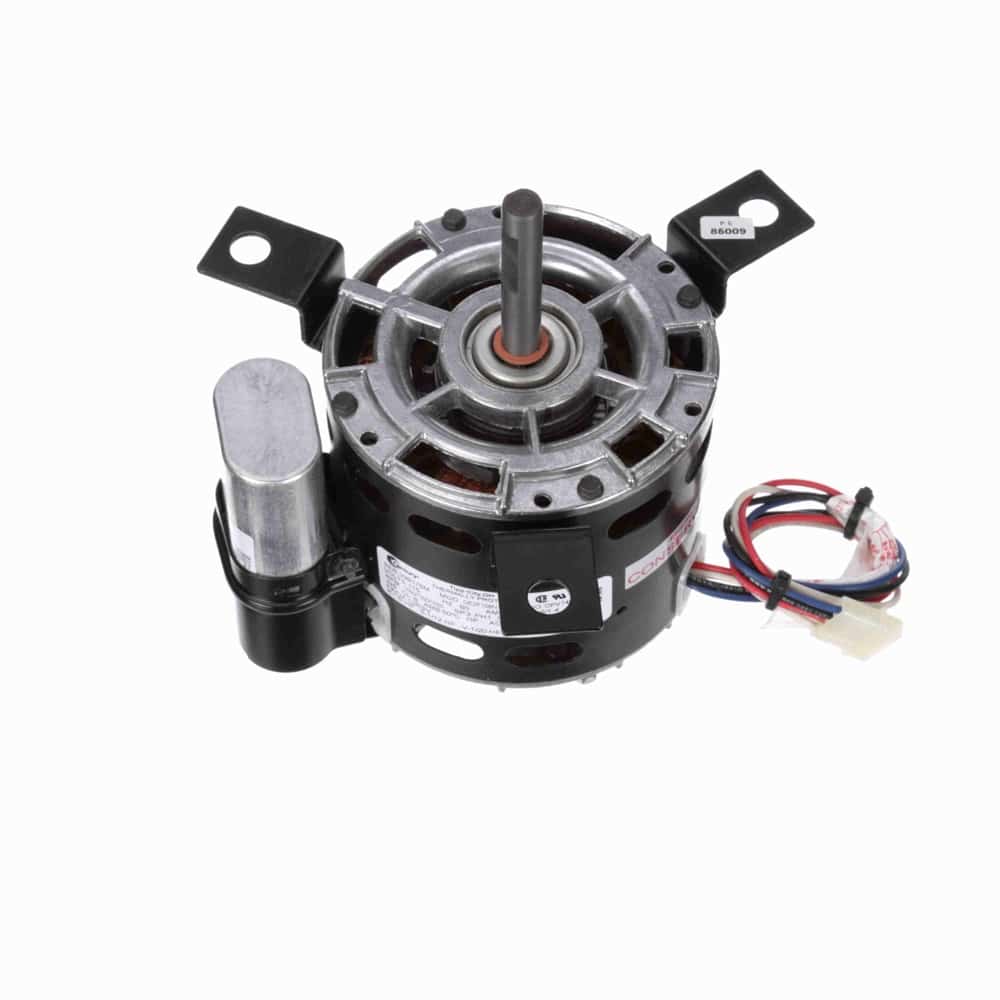

1/6HP PSC 42Y ODP 3spd 1550 CCWSE 115V 10uF-inc OEM
Mfr # OPV748 | Wright’s # CEN OPV748
1/6-1/12-1/20HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1550 RPM, 3 Speed, Permanent Split Capacitor, 115V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OPV748
Wright's #
CEN OPV748
Country of Origin
MEX
Specifications
C Dim
6.88"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
42Y
Frequency
60 Hz
HP
0.17 HP
HP2
1/6-1/12-1/20 HP
Insulation Class
B
kW
0.13kW
Material
Rolled Steel
Max Ambient
50°C
Number of Poles
4
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
2.1/1.9/1.4
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1550
Service Factor
1
Shaft Diameter
0.5"
Speed
1550/1300/1050
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 50°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Flat, and 1″ Flat϶” Leads with AMP Connector
Lug Mount
1/6-1/12-1/20HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1550 RPM, 3 Speed, Permanent Split Capacitor, 115V, ODP Enclosure
