Century

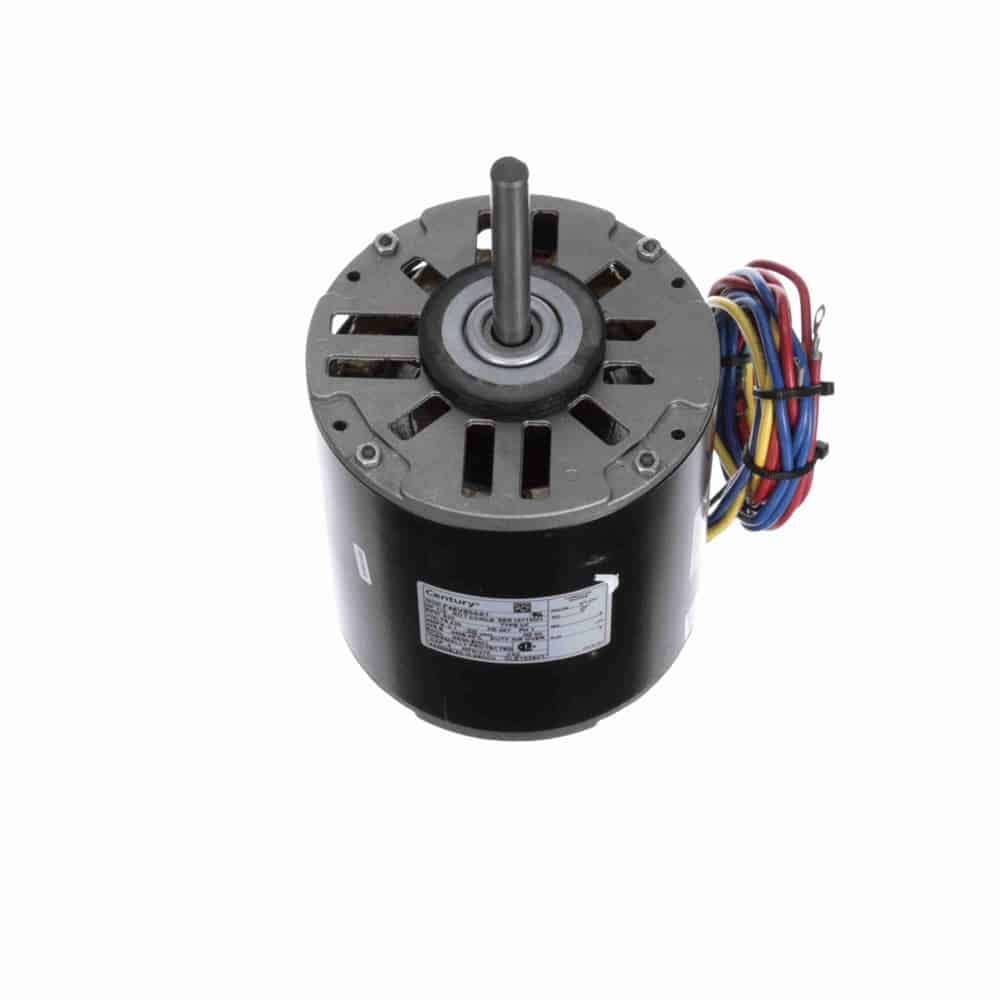

1/3HP PSC 48Y TE 825 CCWSE 230V 4uF OEM

Name: 1/3HP PSC 48Y TE 825 CCWSE 230V 4uF OEM
Brand: Century
SKU: 30484
Price: 345.97 USD
Availability: OutOfStock

Mfr # OLE1038V1 | Wright’s # CEN OLE1038V1

1/3HP OEM Replacement Motor, 1 Phase, 48Y Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 230V, TEAO Enclosure

Product Information

Brand Century

Mfr # OLE1038V1

Wright's # CEN OLE1038V1

Specifications

C Dim 9.74"

Electrical Type Permanent Split Capacitor

Enclosure TEAO

Frame 48Y

Frequency 60 Hz

HP 0.33 HP

HP2 1/3 HP

Insulation Class B

kW 0.25kW

Material Rolled Steel

Max Ambient 40°C

Number of Poles 8

Number of Speeds 1

Overload Protection Automatic

Phase 1

Rated Current 2.1

Rated Voltage 230

Rotation Counterclockwise Lead End

RPM 825

Service Factor 1

Shaft Diameter 0.5"

Speed 825

Starting Method

Description

OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Shaft End and Lead End End-Frame, Semi-Enclosed, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЃ” Leads with Female Spade Terminal, 48″ Lead with Female Spade Terminal, 48″ Lead with #10 Eyelet
Resilient Mounting Ring Shaft End and Lead End, Belly Band Mounting (Belly Band Not Included)

1/3HP OEM Replacement Motor, 1 Phase, 48Y Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 230V, TEAO Enclosure
