Century

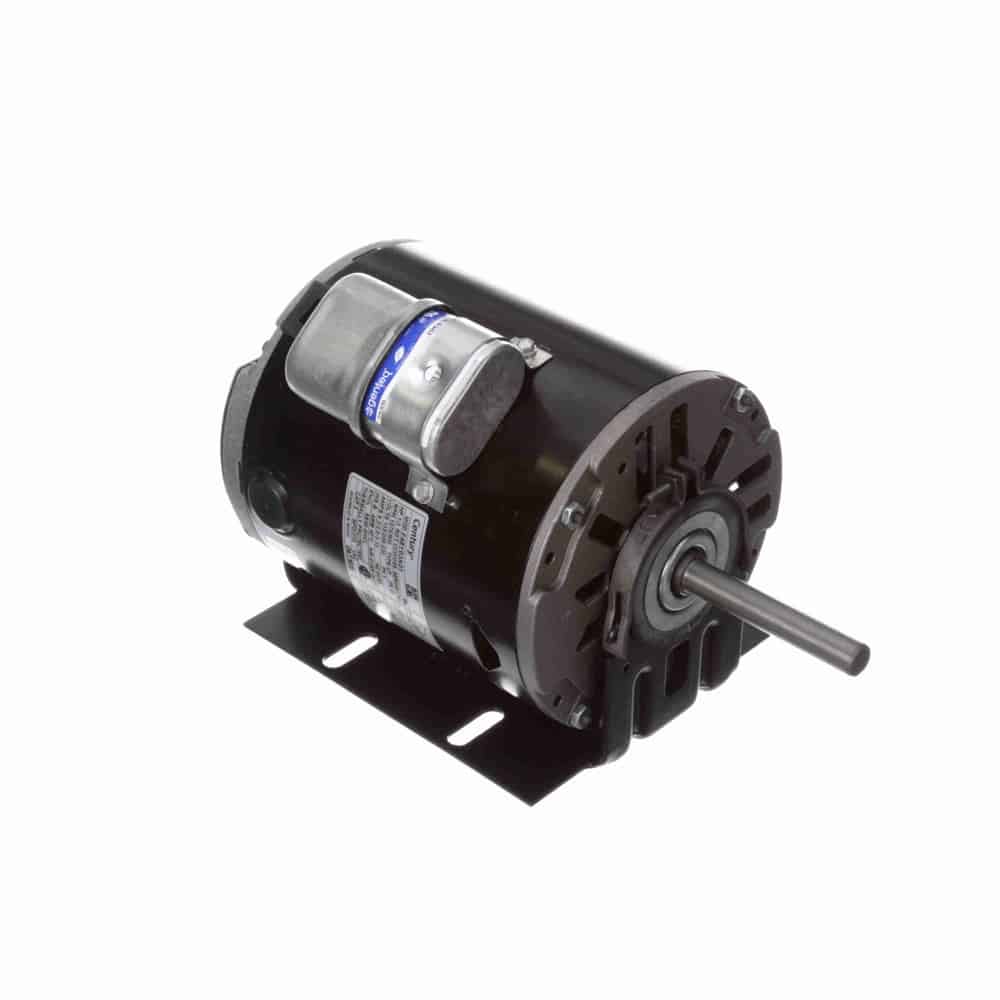

1/3HP PSC 5.6″ TE 1075 CCWSE 115/208-230V 5uF-inc OEM
Mfr # OKT3035 | Wright’s # CEN OKT3035
1/3HP OEM Replacement Motor, 1 Phase, 48 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 115/208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OKT3035
Wright's #
CEN OKT3035
Specifications
C Dim
10.5"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
6.3/2.8-3.15
Rated Voltage
115/208-230
Rotation
Counterclockwise Opposite Shaft End
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075/900
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Shaft End End-Frame, Enclosed Lead End End-Frame, Semi-Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Flate/2″ Conduit with Plug
Resilient Base
1/3HP OEM Replacement Motor, 1 Phase, 48 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 115/208-230V, TEAO Enclosure
