Century

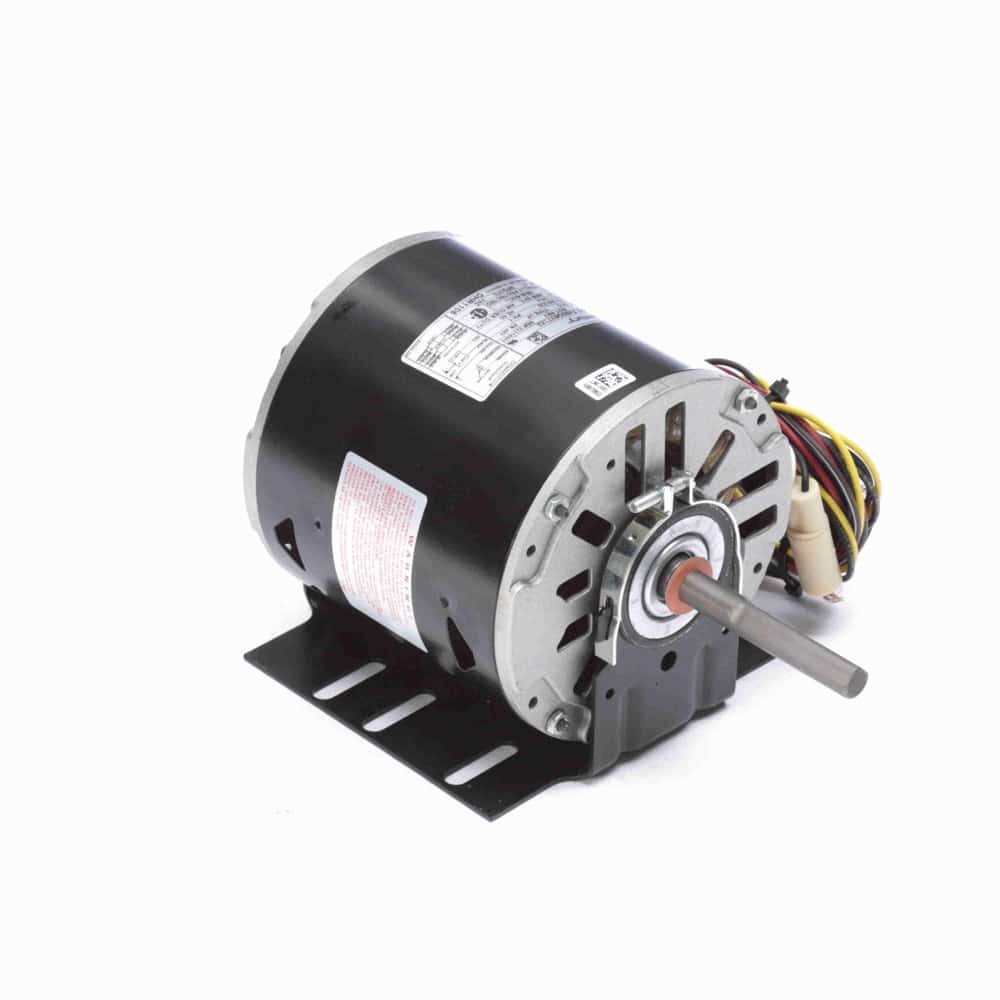

1HP PSC 48Y TE 1075 208/230V 15uF OEM
Mfr # OHR1106 | Wright’s # CEN OHR1106
1HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208/230V, TEAO Enclosure
$428.86
Product Information
Brand
Century
Mfr #
OHR1106
Wright's #
CEN OHR1106
Country of Origin
IND
Specifications
C Dim
9.74"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
50°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
7.1/6.4
Rated Voltage
208/230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
Class B Insulation, 50°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Double FlatЗ” Leads
Resilient Base
1HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208/230V, TEAO Enclosure
