Century
1/6HP PSC 48Y TE 1075 CCWSE 208-230V 5uF OEM
Mfr # OGD1016 | Wright’s # CEN OGD1016

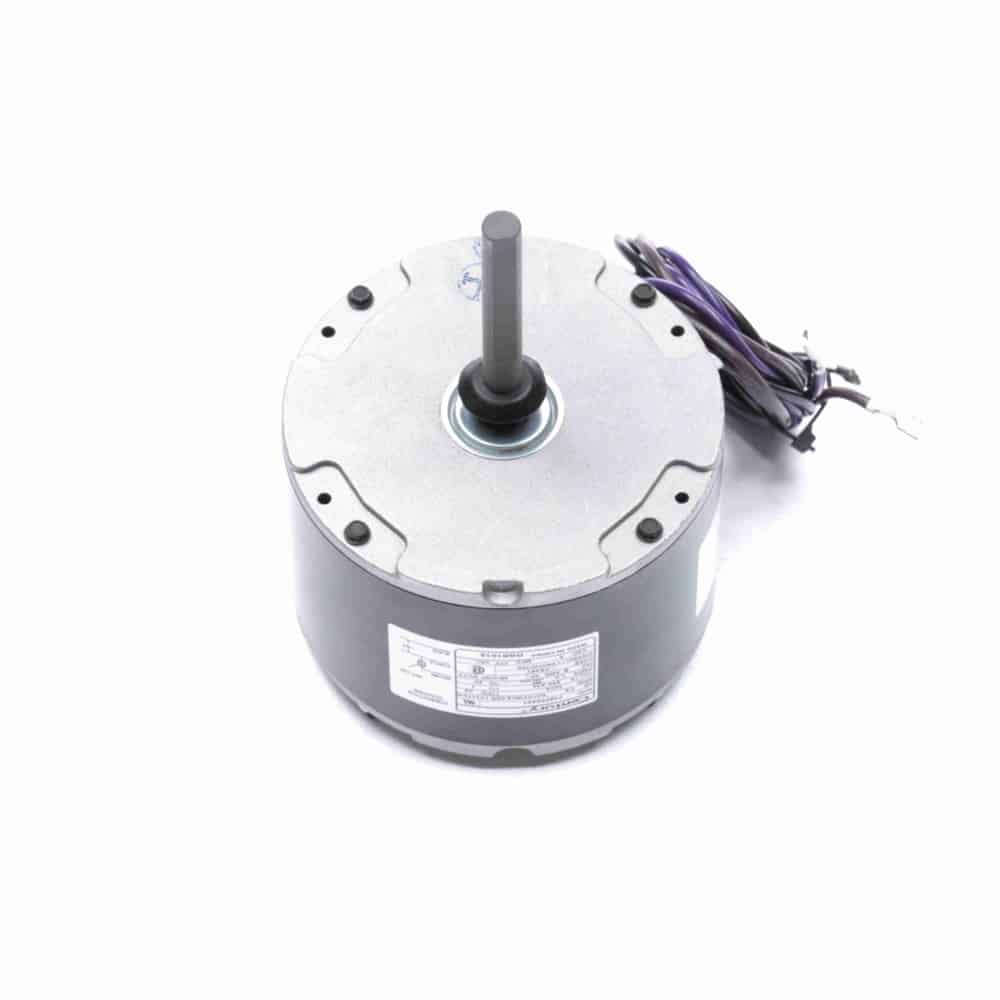

1/6HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
$152.69
Product Information
Brand
Century
Mfr #
OGD1016
Wright's #
CEN OGD1016
Country of Origin
MEX
Specifications
C Dim
8.05"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.17 HP
HP2
1/6 HP
Insulation Class
B
kW
0.13kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1
Rated Voltage
208-230
Rotation
Counterclockwise Lead End
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2″ Diameter Shaft with FlatА” Leads with Female Spade Terminals
Extended Studs Lead End, Vertical Shaft Down
1/6HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
