Century

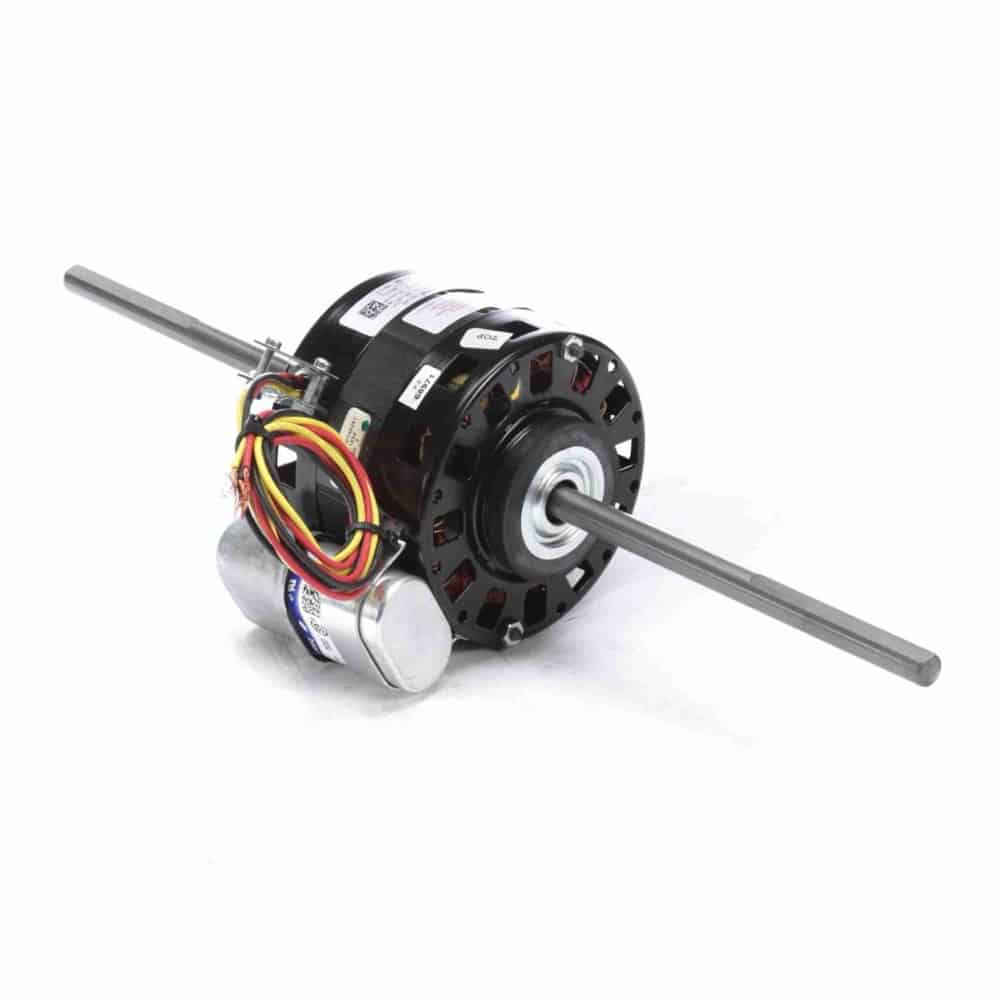

1/4HP PSC 5″ ODP 2spd 1625 CCWSE 208-230V 5uF-inc OEM
Mfr # OFC1024A | Wright’s # CEN OFC1024A
1/4HP OEM Replacement Motor, 1 Phase, 42 Frame, 1625 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OFC1024A
Wright's #
CEN OFC1024A
Country of Origin
MEX
Specifications
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
42
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
2
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.6
Rated Voltage
208-230
Rotation
Counterclockwise Lead End
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Speed
1625
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-440 Volts (Supplied with Motor)
Thermally Protected
Open Lead End End-Frame and Opposite Lead End End-Frame, Semi-Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Double Shaft with FlatЉ” Leads
Resilient Ring Mounting
1/4HP OEM Replacement Motor, 1 Phase, 42 Frame, 1625 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure
