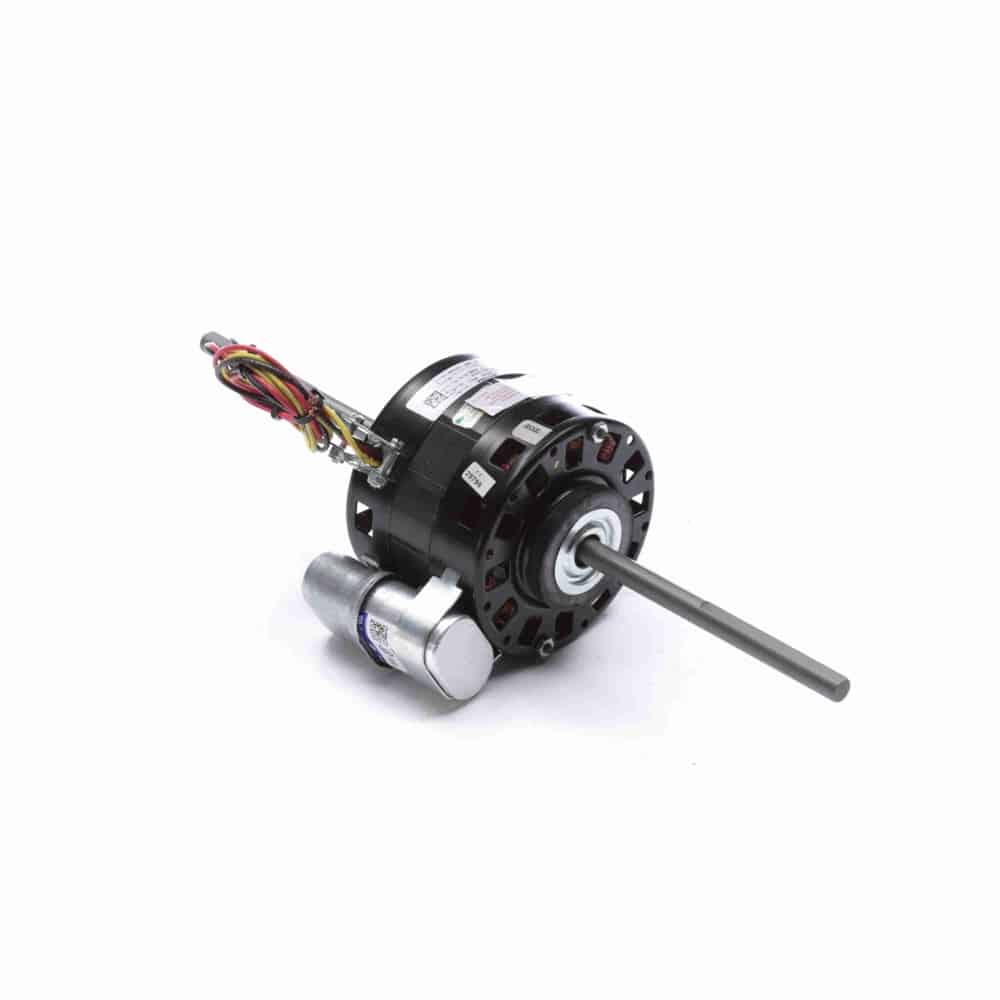

Century
1/8HP PSC 42Y ODP 2spd 1500 CCWSE 208-230V 5uF-inc OEM
Mfr # OFC1004 | Wright’s # CEN OFC1004
1/8HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1500 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OFC1004
Wright's #
CEN OFC1004
Specifications
C Dim
17"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
42Y
Frequency
60 Hz
HP
0.13 HP
HP2
1/8 HP
Insulation Class
A
kW
0.1kW
Max Ambient
40°C
Number of Poles
4
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
1.3
Rated Voltage
208-230
Rotation
Counterclockwise Lead End
RPM
1500
Service Factor
1
Shaft Diameter
0.5"
Speed
1500
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-440 Volts (Supplied with Motor)
Thermally Protected
Open Lead End End-Frame and Opposite Lead End End-Frame, Semi-Enclosed Shell, Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Double Shaft with FlatЉ” Leads
Resilient Ring Mount
1/8HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1500 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure
