Century
1/4HP PSC 48Y TE 1075 CCWSE 208-230V 5uF OEM
Mfr # OCT1026S | Wright’s # CEN OCT1026S

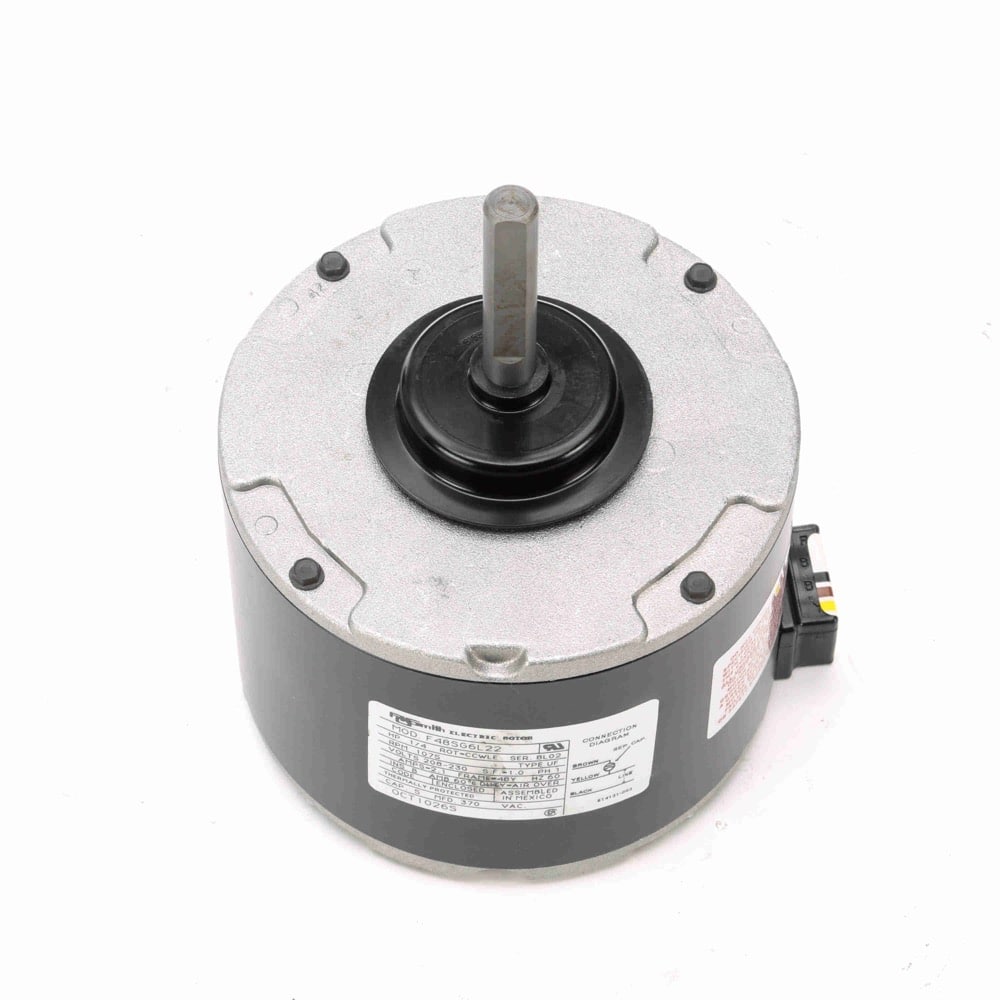

1/4HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OCT1026S
Wright's #
CEN OCT1026S
Country of Origin
MEX
Specifications
C Dim
7.36"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
6
Overload Protection
Automatic
Phase
1
Rated Current
2.1
Rated Voltage
208-230
Rotation
Counterclockwise Lead End
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 60°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Flat
Terminal Block Connection
Belly Band Mount Vertical Shaft Up
1/4HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
