Century

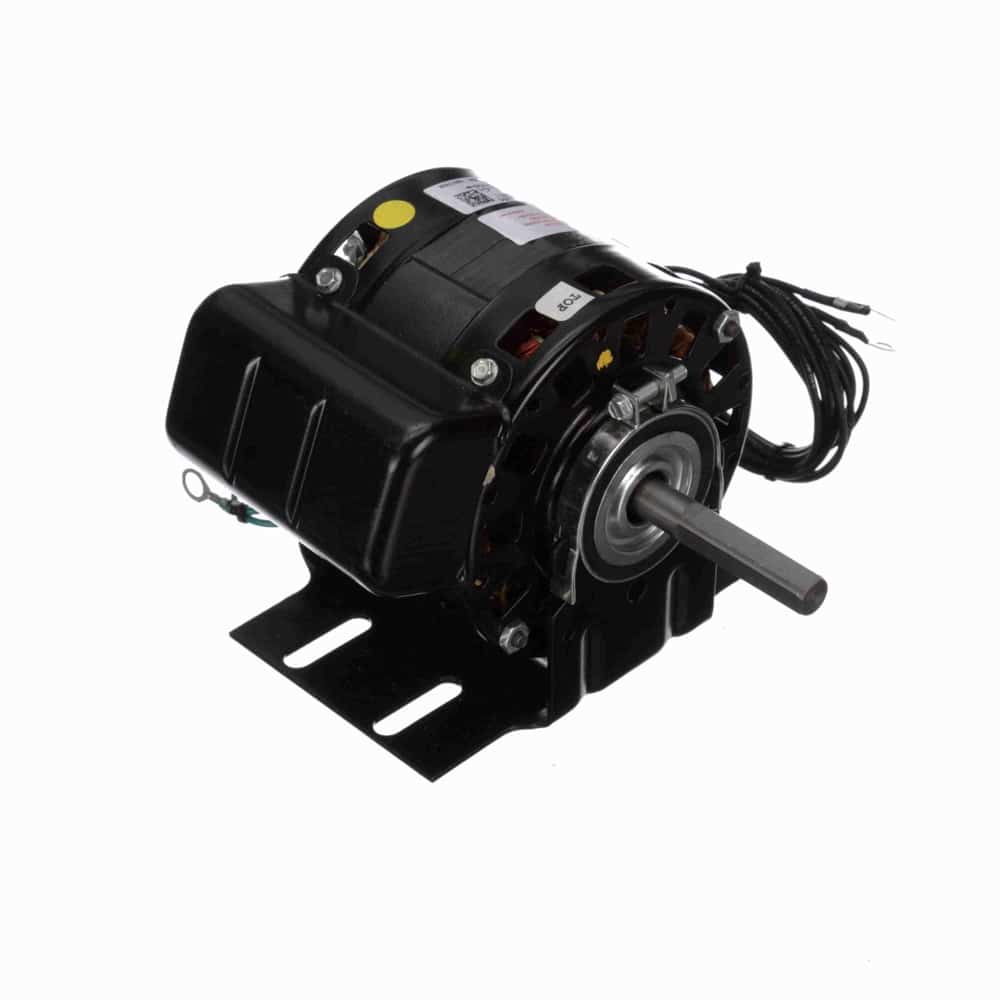

1/6HP PSC 42Y ODP 1625 CCWSE 230V 5uF-inc OEM
Mfr # OCP0251 | Wright’s # CEN OCP0251
1/6HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OCP0251
Wright's #
CEN OCP0251
Specifications
C Dim
7.42"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
42Y
Frequency
60 Hz
HP
0.17 HP
HP2
1/6 HP
Insulation Class
B
kW
0.13kW
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.5
Rated Voltage
230
Rotation
Clockwise Lead End
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Speed
1400/1625
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Double FlatЗ” Leads with #10 Eyelet
Resilient Base
1/6HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 230V, ODP Enclosure
