Century

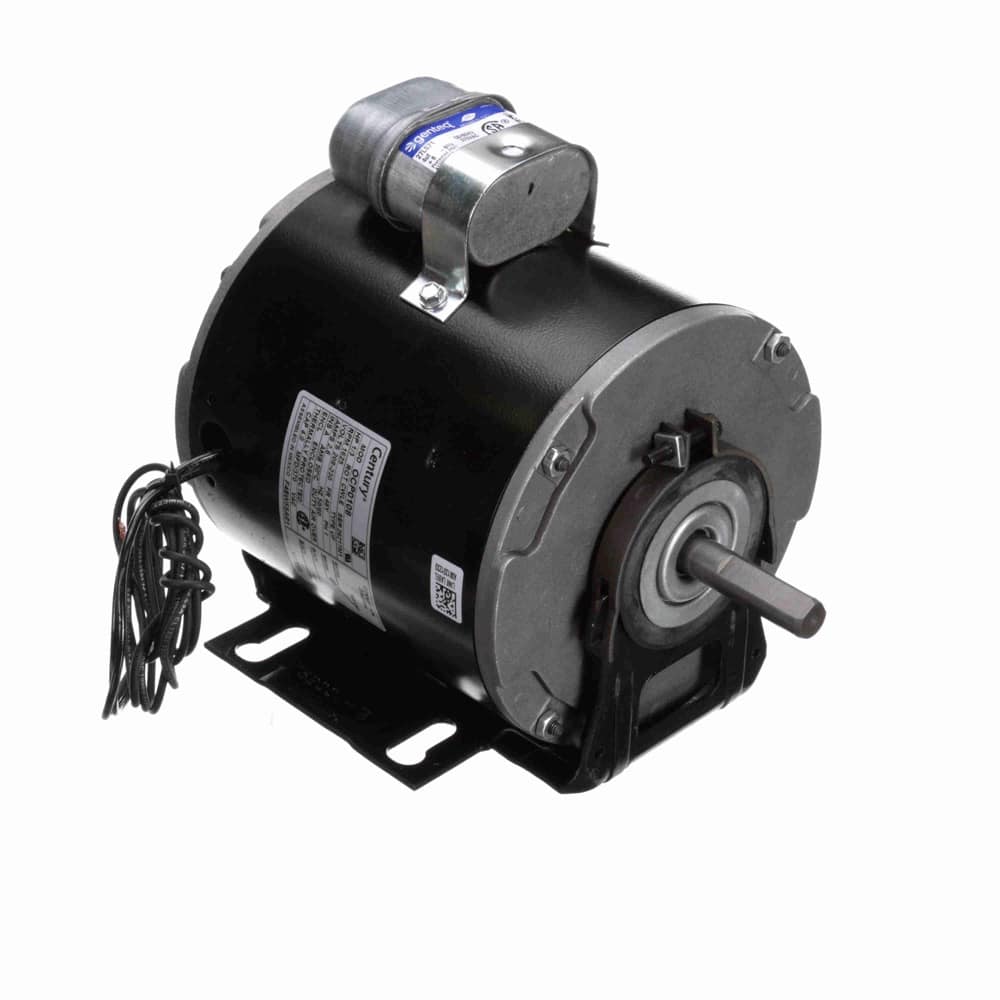

1/3HP PSC 48Y TE 1625 CCWSE 208-230V 4uF-inc OEM
Mfr # OCP0108 | Wright’s # CEN OCP0108
1/3HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OCP0108
Wright's #
CEN OCP0108
Country of Origin
MEX
Specifications
C Dim
7.99"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
A
kW
0.25kW
Material
Rolled Steel
Max Ambient
50°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
2.6
Rated Voltage
208-230
Rotation
Clockwise Lead End
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Speed
1625
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class A Insulation, 50°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Double FlatЍ” Leads
Resilient Base
1/3HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
