Century
1/2HP PSC 5.6″ OAO 1075 CCWSE 208-230V 5uF OEM
Mfr # OCD1056 | Wright’s # CEN OCD1056

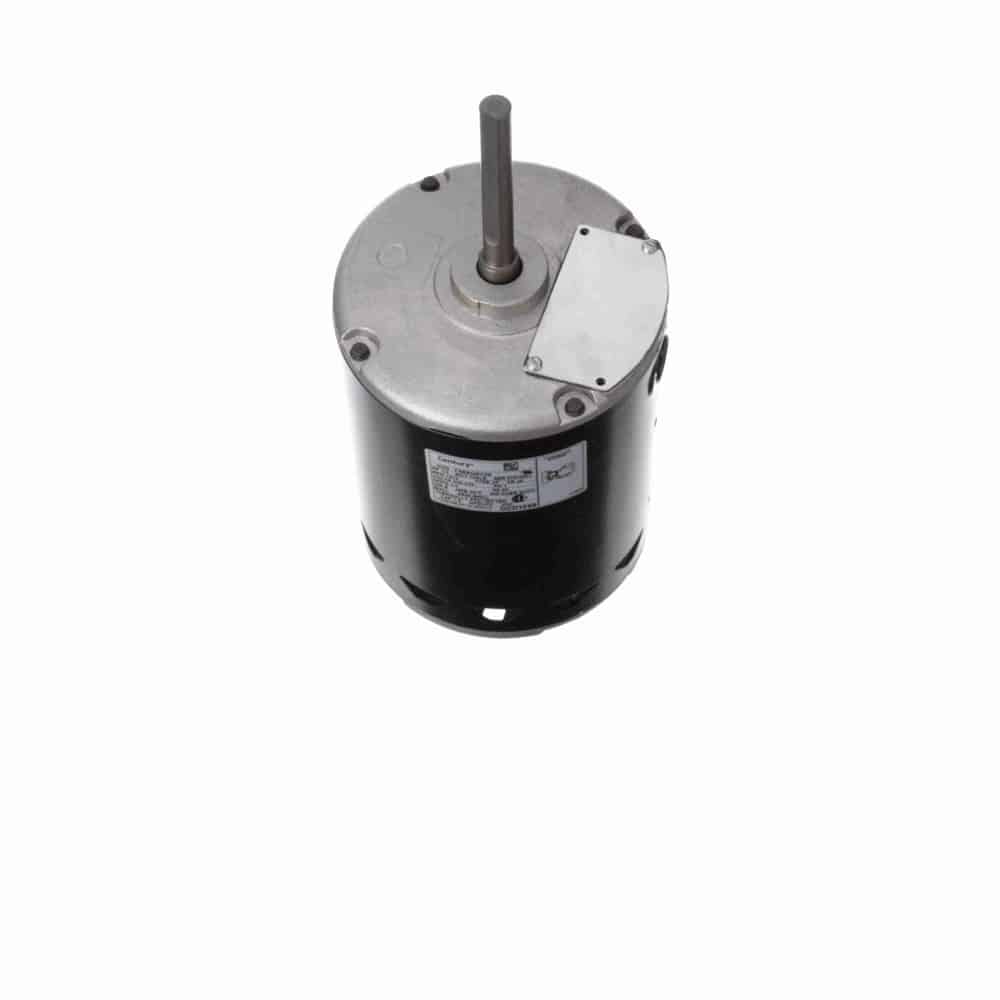

1/2HP OEM Replacement Motor, 1 Phase, 48 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
$394.82
Product Information
Brand
Century
Mfr #
OCD1056
Wright's #
CEN OCD1056
Specifications
C Dim
12.28"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
48
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
4
Rated Voltage
208-230
Rotation
Clockwise Lead End
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Opposite Shaft End End-Frame and Shell, Enclosed Shaft End End-Frame and Shell, Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Flate/2″ Conduit with Plug
Vertical Shaft Up, Belly Band Mount (Belly Band Not Included)
1/2HP OEM Replacement Motor, 1 Phase, 48 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
