Century
1/12HP ShP 42Y OAO 1000 CWSE 115V OEM
Mfr # OBR40086 | Wright’s # CEN OBR40086

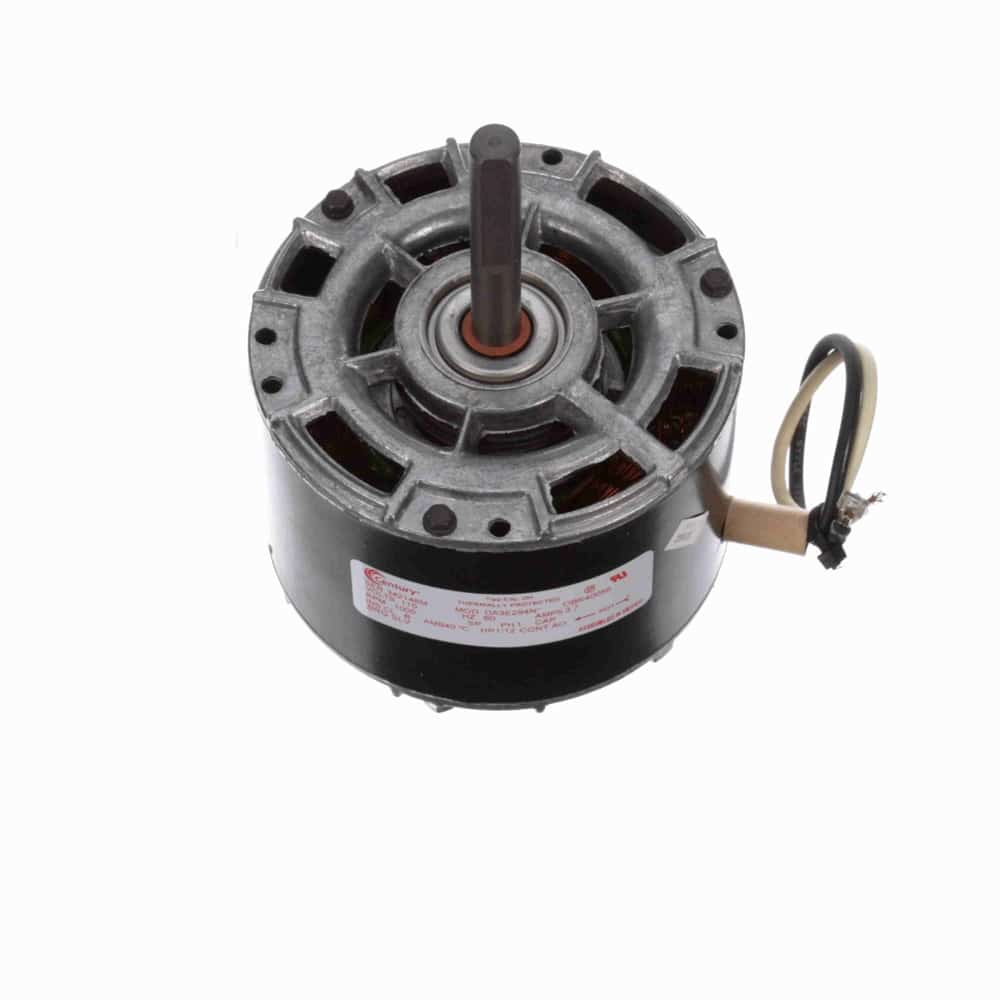

1/12HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1000 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
$136.74
Product Information
Brand
Century
Mfr #
OBR40086
Wright's #
CEN OBR40086
Specifications
C Dim
7.5"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
42Y
Frequency
60 Hz
HP
0.08 HP
HP2
1/12 HP
Insulation Class
B
kW
0.06kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
3.7
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1000
Service Factor
1
Shaft Diameter
0.5"
Speed
1000
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Open Shaft End and Opposite Shaft End End-Frame, Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Flatl” Leads
Belly Band Mount (Belly Band Not Included)
1/12HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1000 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
