Century

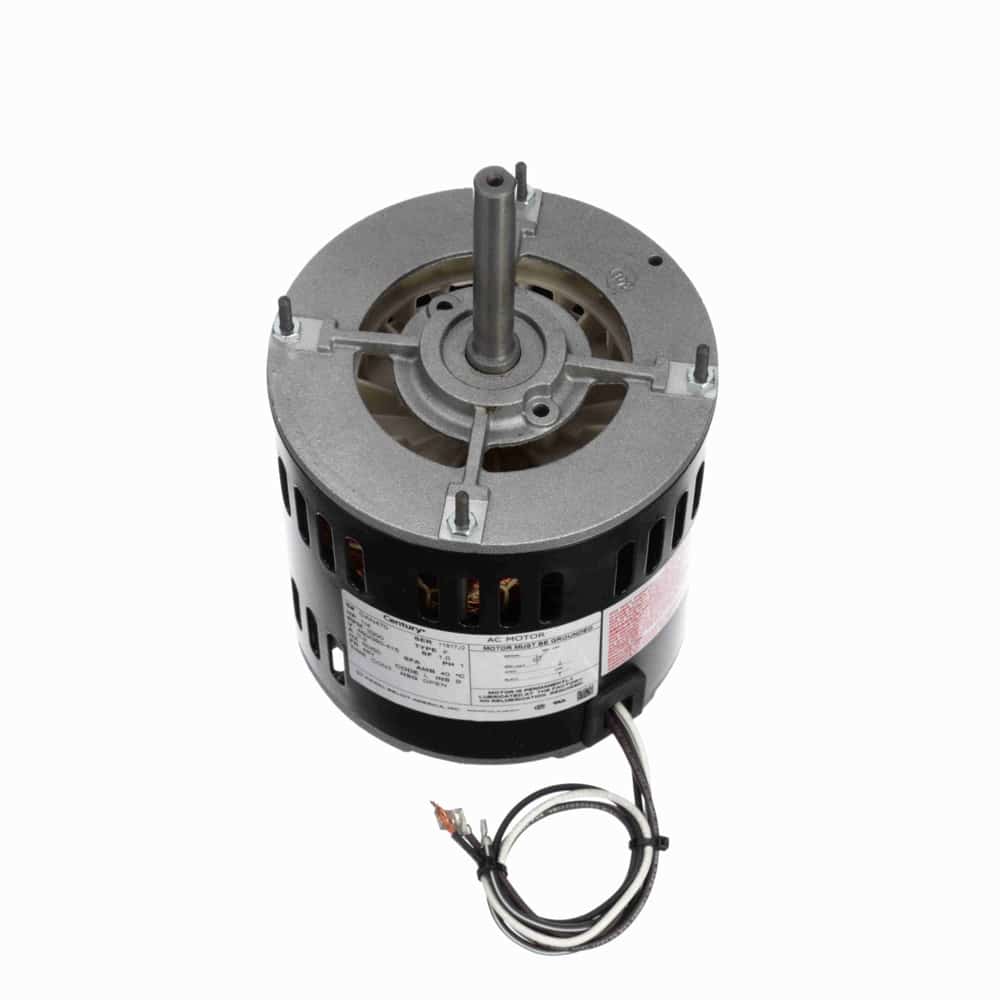

1/4HP PSC 48Y ODP 3200 CCWSE 380-415/460V 5uF OEM
Mfr # OAN470 | Wright’s # CEN OAN470
1/4HP OEM Replacement Motor, 1 Phase, 48Y Frame, 3200 RPM, 1 Speed, Permanent Split Capacitor, 380-415/460V, ODP Enclosure
$379.57
Product Information
Brand
Century
Mfr #
OAN470
Wright's #
CEN OAN470
Country of Origin
MEX
Specifications
C Dim
8.74"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
48Y
Frequency
60/50 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
0.9
Rated Voltage
380-415/460
Rotation
Counterclockwise Lead End
RPM
3200
Service Factor
1
Shaft Diameter
0.5"
Speed
3200
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Flatϳ” Leads
Extended Studs Shaft End, Belly Band Mount
1/4HP OEM Replacement Motor, 1 Phase, 48Y Frame, 3200 RPM, 1 Speed, Permanent Split Capacitor, 380-415/460V, ODP Enclosure
