Century

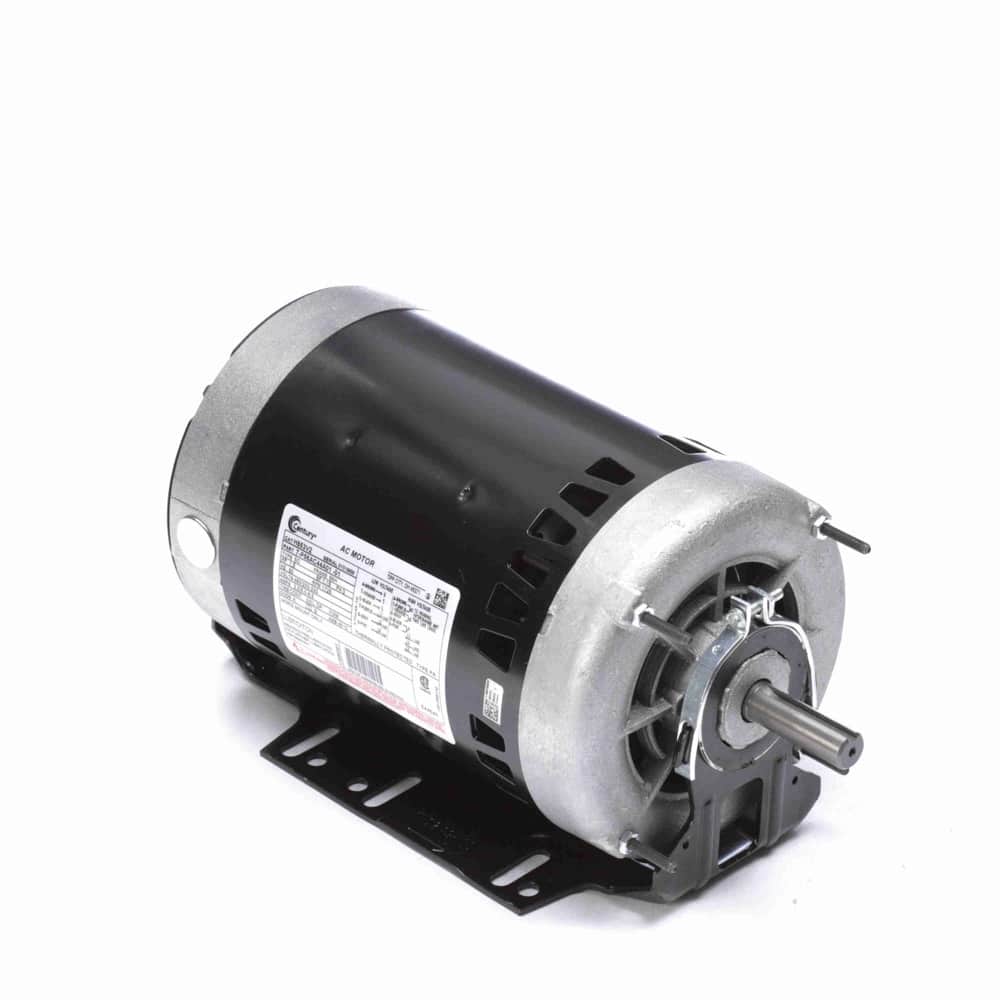

1.5HP 3PH 56H ODP 1800 200-230/460V BM
Mfr # H853V2 | Wright’s # CEN H853V2
1.5HP Fan & Blower Motor, 3 Phase, 56H Frame, 1725 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 200-230/460V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
H853V2
Wright's #
CEN H853V2
Country of Origin
MEX
Specifications
C Dim
12.94"
Electrical Type
Polyphase, Induction Type, Single Or Dual Voltage
Enclosure
ODP
Frame
56H
Frequency
60 Hz
HP
1.5 HP
HP2
1.5 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
3
Rated Current
2.8/5.0-5.6
Rated Voltage
200-230/460
Rotation
Reversible Counterclockwise
RPM
1725
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1800
Starting Method
