Century

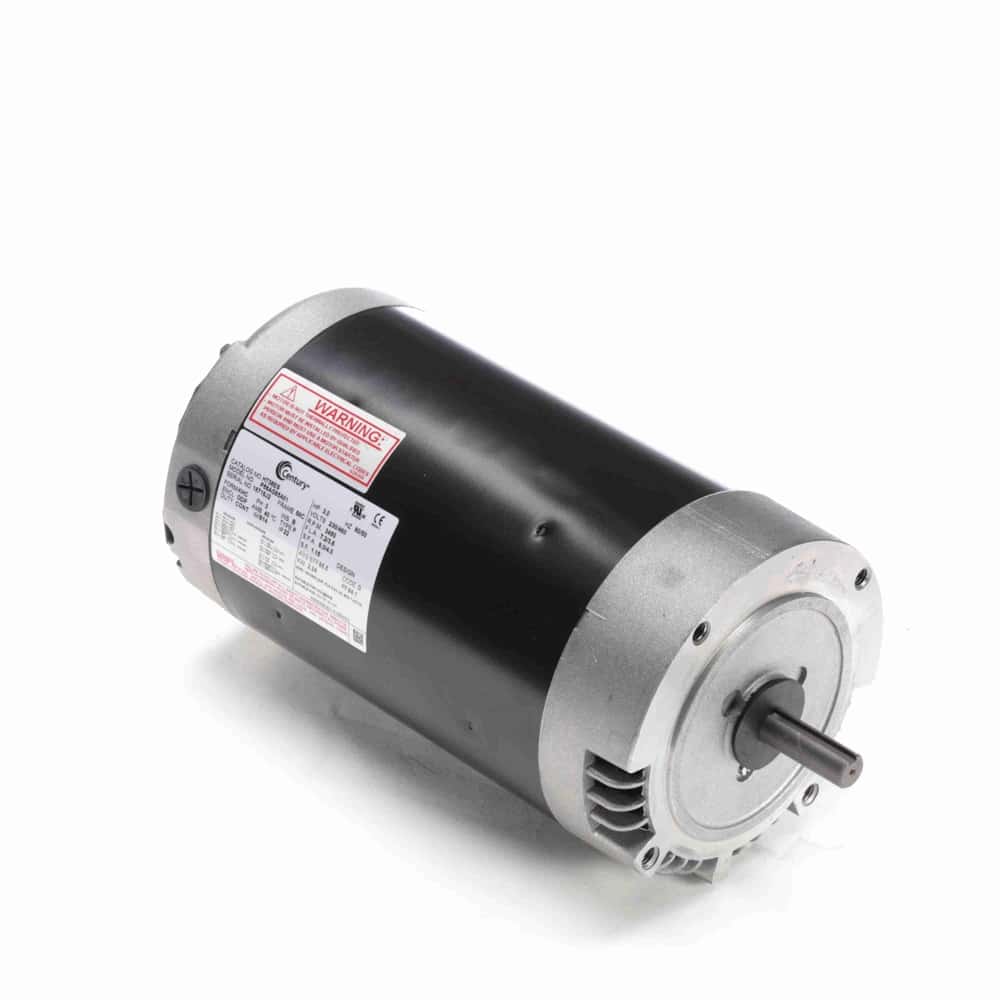

3HP 3PH 56C 2P ODP 3450 230/460V
Mfr # H736ES | Wright’s # CEN H736ES
3HP General Purpose Pump Motor, 3 Phase, 56C Frame, 3450 RPM, 1 Speed, Polyphase, 230/460V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
H736ES
Wright's #
CEN H736ES
Country of Origin
MEX
Specifications
C Dim
14.03"
Electrical Type
Polyphase
Enclosure
ODP
Full Load Efficiency
85.5
Frame
56C
Frequency
60/50 Hz
HP
3 HP
HP2
3 HP
Insulation Class
B
kW
2.2kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
7.2/3.6
Rated Voltage
230/460
Rotation
Reversible
RPM
3450
Service Factor
1.15
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
Mechanically locked bearing on shaft end
Double sealed ball bearings
Keyed shaft
3HP General Purpose Pump Motor, 3 Phase, 56C Frame, 3450 RPM, 1 Speed, Polyphase, 230/460V, ODP Enclosure
