Century

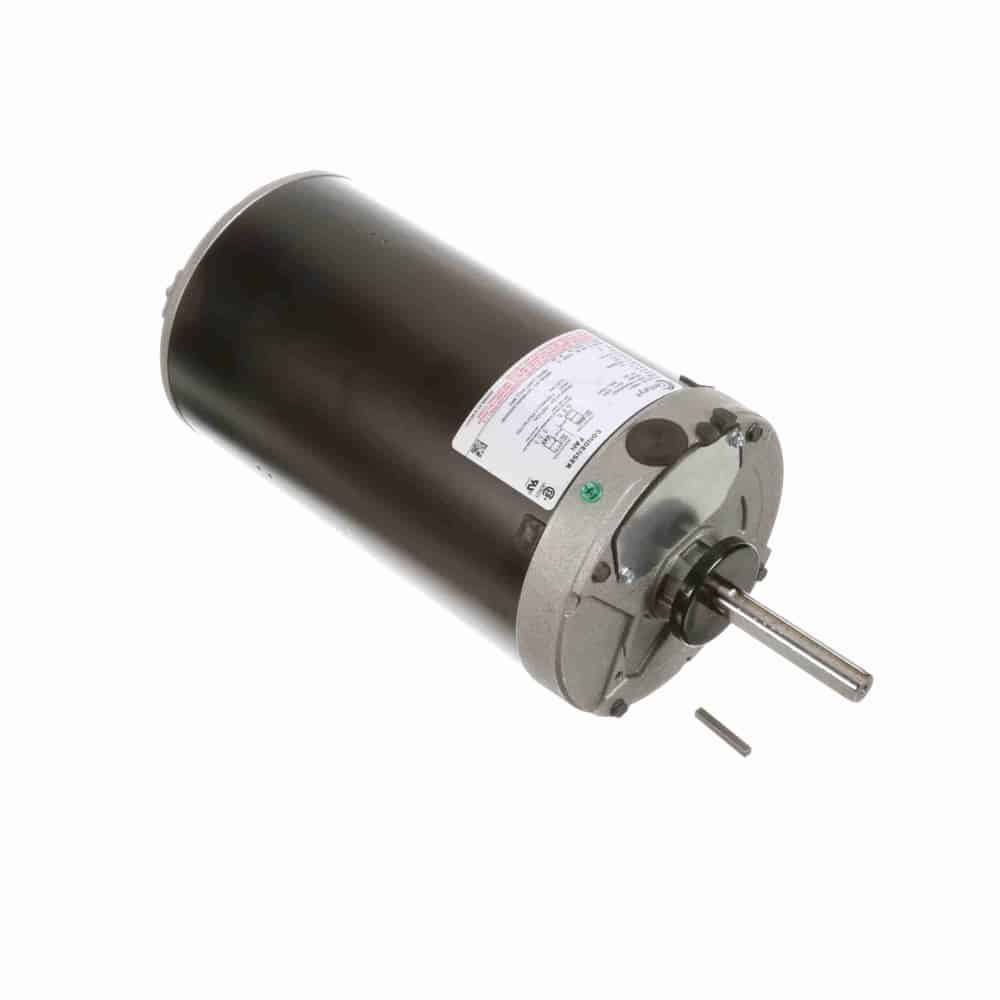

2HP 3PH 56Y TE 1200 230/460V CF
Mfr # H698V1 | Wright’s # CEN H698V1
2HP Condenser Fan Motor, 3 Phase, 56Y Frame, 1140 RPM, 1 Speed, Three Phase, 230/460V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
H698V1
Wright's #
CEN H698V1
Country of Origin
MEX
Specifications
C Dim
16.7"
Electrical Type
Three Phase
Enclosure
TEAO
Full Load Efficiency
82.5
Frame
56Y
Frequency
60 Hz
HP
2 HP
HP2
2 HP
Insulation Class
B
kW
1.5kW
Material
Rolled Steel
Max Ambient
70°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
3
Rated Current
6.2/3.1
Rated Voltage
230/460
Rotation
Reversible
RPM
1140
Service Factor
1
Shaft Diameter
0.625"
Speed
1200
Starting Method
