Century

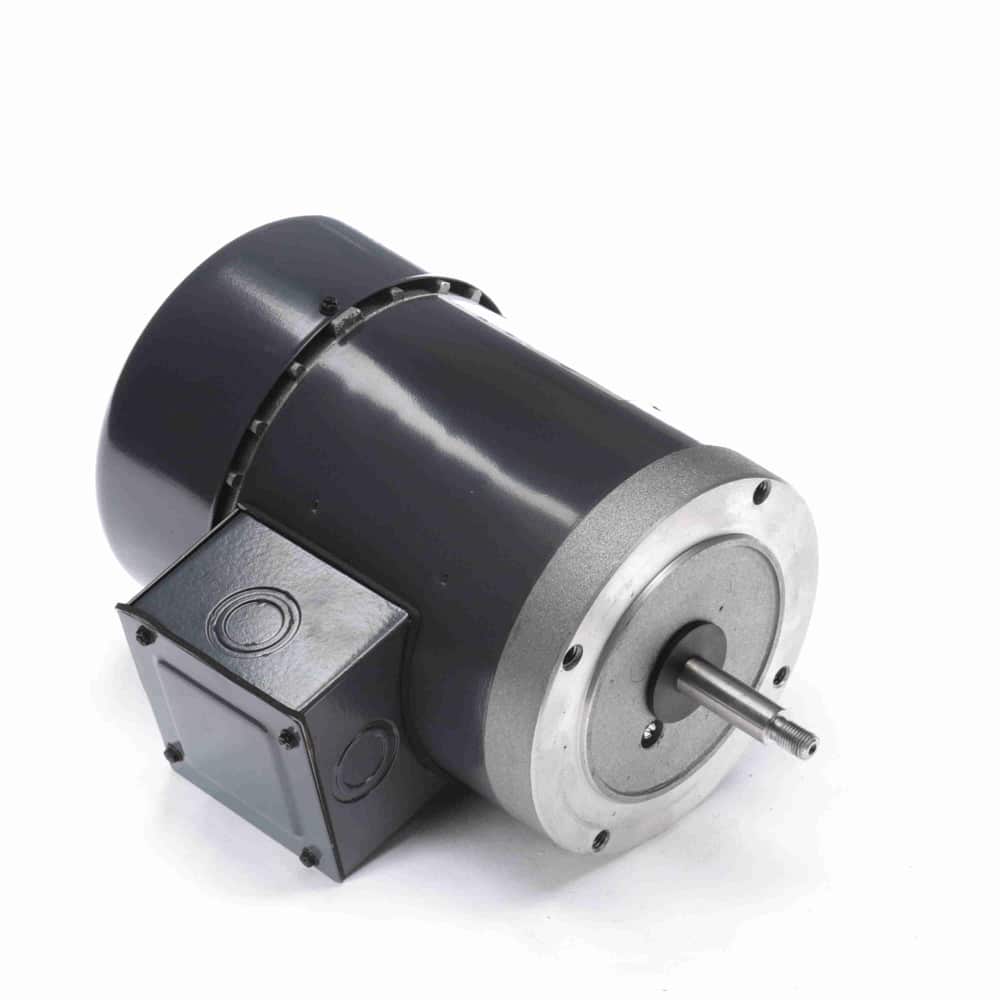

1.5HP 3PH 56J 2P TEFC 3450 230/460V
Mfr # H661ES | Wright’s # CEN H661ES
1.5HP General Purpose Pump Motor, 3 Phase, 56J Frame, 3450 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
H661ES
Wright's #
CEN H661ES
Country of Origin
MEX
Specifications
C Dim
12.27"
Electrical Type
Polyphase, Induction Type, Single Or Dual Voltage
Enclosure
TEFC
Full Load Efficiency
84
Frame
56J
Frequency
60 Hz
HP
1.5 HP
HP2
1.5 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
4.0/2.0
Rated Voltage
230/460
Rotation
Reversible Clockwise
RPM
3450
Service Factor
1.15
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
NEMA C-Face
Double sealed ball bearings
303 stainless steel threaded shaft
Operational at 200-230/460 V @60HZ. Nameplate image may vary from actual product.
1.5HP General Purpose Pump Motor, 3 Phase, 56J Frame, 3450 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 230/460V, TEFC Enclosure
