Century

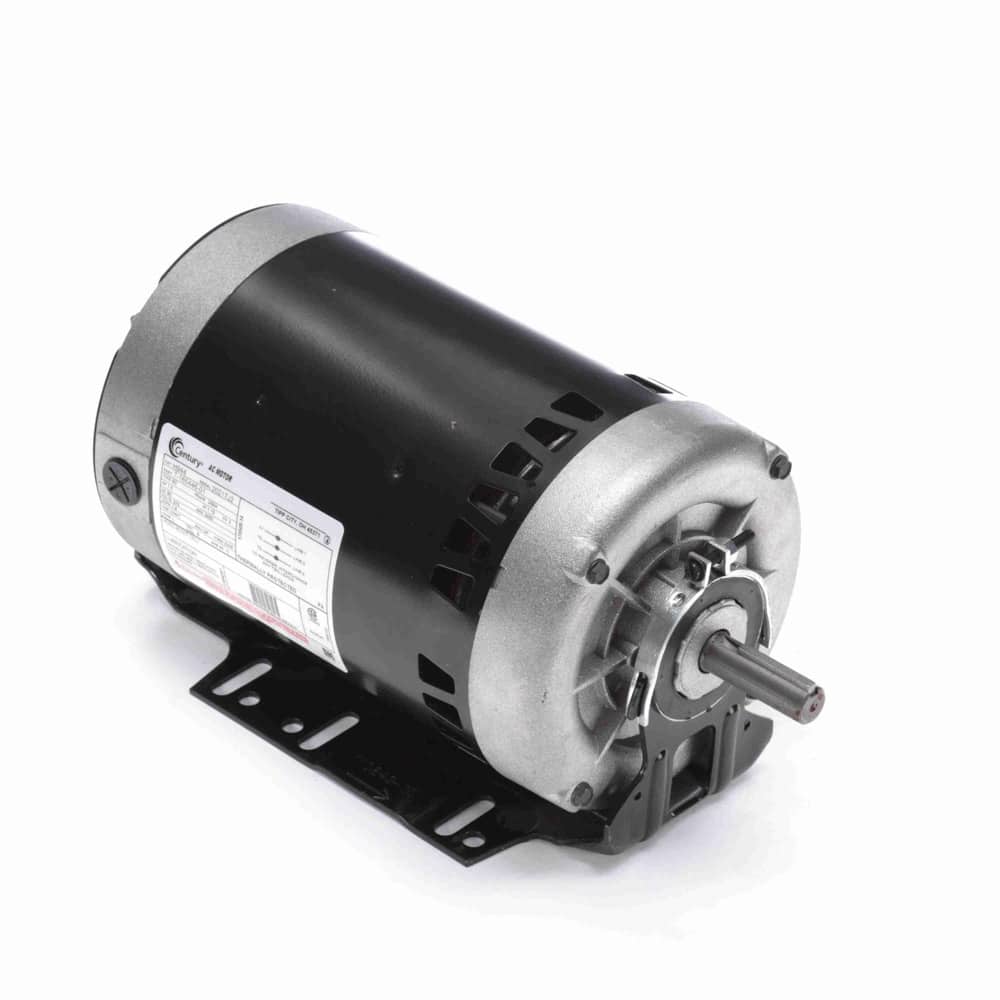

1.5HP 3PH 56 2P ODP 3600 200-230/460V OBSOLETE
Mfr # H531 | Wright’s # CEN H531
1.5HP 3-Phase General Purpose Motor, 3 Phase, 56 Frame, 3450 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 200-230/460V, ODP Enclosure
$589.68
Product Information
Brand
Century
Mfr #
H531
Wright's #
CEN H531
Country of Origin
MEX
Specifications
C Dim
11.13"
Electrical Type
Polyphase, Induction Type, Single Or Dual Voltage
Enclosure
ODP
Frame
56
Frequency
60 Hz
HP
1.5 HP
HP2
1.5 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
4.5-4.2/2.1
Rated Voltage
200-230/460
Rotation
Reversible Counterclockwise
RPM
3450
Service Factor
1.3
Shaft Diameter
0.625"
Speed
3600
Starting Method
