Century

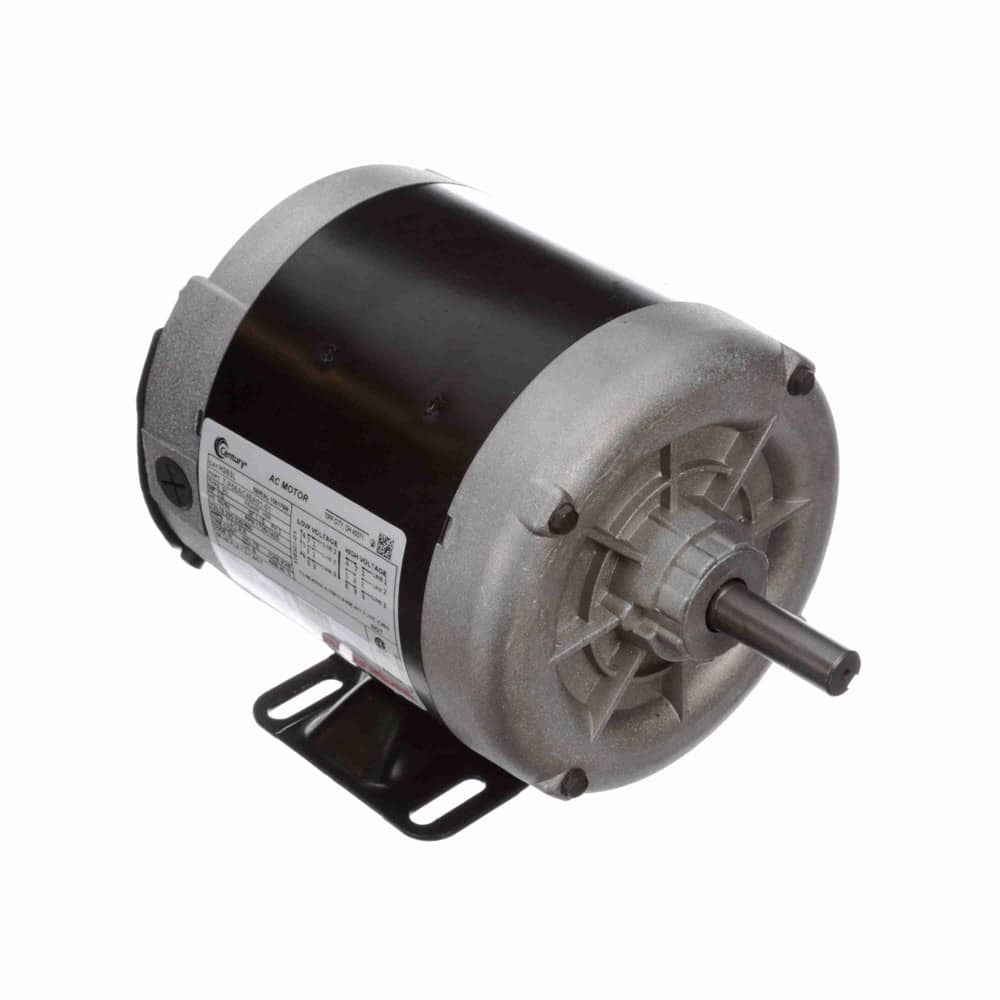

1/3HP 3PH 56 4P TENV 1725 200-230/460V
Mfr # H263L | Wright’s # CEN H263L
1/3HP 3-Phase General Purpose Motor, 3 Phase, 56 Frame, 1725 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 200-230/460V, TENV Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
H263L
Wright's #
CEN H263L
Country of Origin
MEX
Specifications
C Dim
10.45"
Electrical Type
Polyphase, Induction Type, Single Or Dual Voltage
Enclosure
TENV
Frame
56
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
1.2-1.2/.6
Rated Voltage
200-230/460
Rotation
Reversible Counterclockwise
RPM
1725
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1725/1425
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Suitable for belt-driven or fan-on-shaft applications.
1/3HP 3-Phase General Purpose Motor, 3 Phase, 56 Frame, 1725 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 200-230/460V, TENV Enclosure
