Century
1/3HP 3PH 56J 2P TENV 3450 200-230/460V
Mfr # H259 | Wright’s # CEN H259

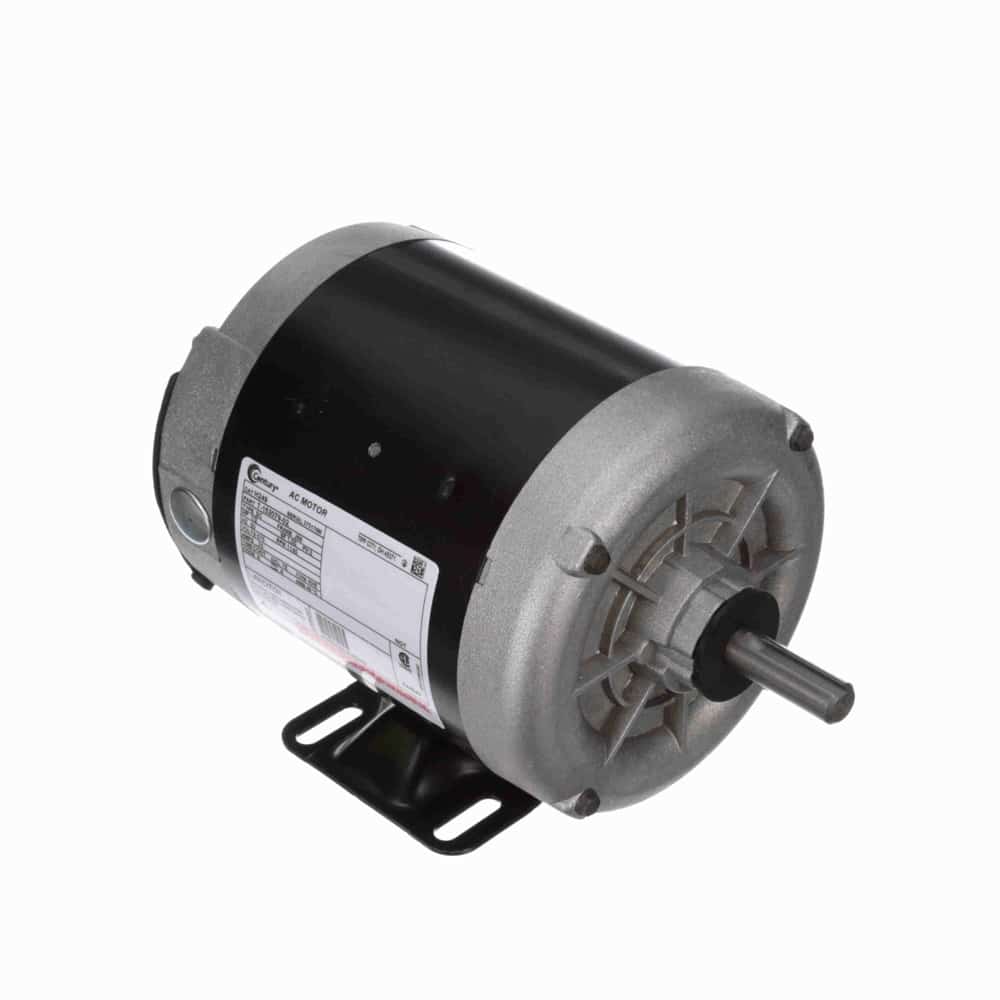

1/3HP General Purpose Pump Motor, 3 Phase, 56J Frame, 3450 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 200-230/460V, TENV Enclosure
$320.17
Product Information
Brand
Century
Mfr #
H259
Wright's #
CEN H259
Country of Origin
MEX
Specifications
C Dim
10.05"
Electrical Type
Polyphase, Induction Type, Single Or Dual Voltage
Enclosure
TENV
Frame
56J
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
1.3-1.4/.7
Rated Voltage
200-230/460
Rotation
Reversible Clockwise
RPM
3450
Service Factor
1.15
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
Mechanically locked bearing on shaft end
Double sealed ball bearings
303 stainless steel threaded shaft
1/3HP General Purpose Pump Motor, 3 Phase, 56J Frame, 3450 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 200-230/460V, TENV Enclosure
