Century

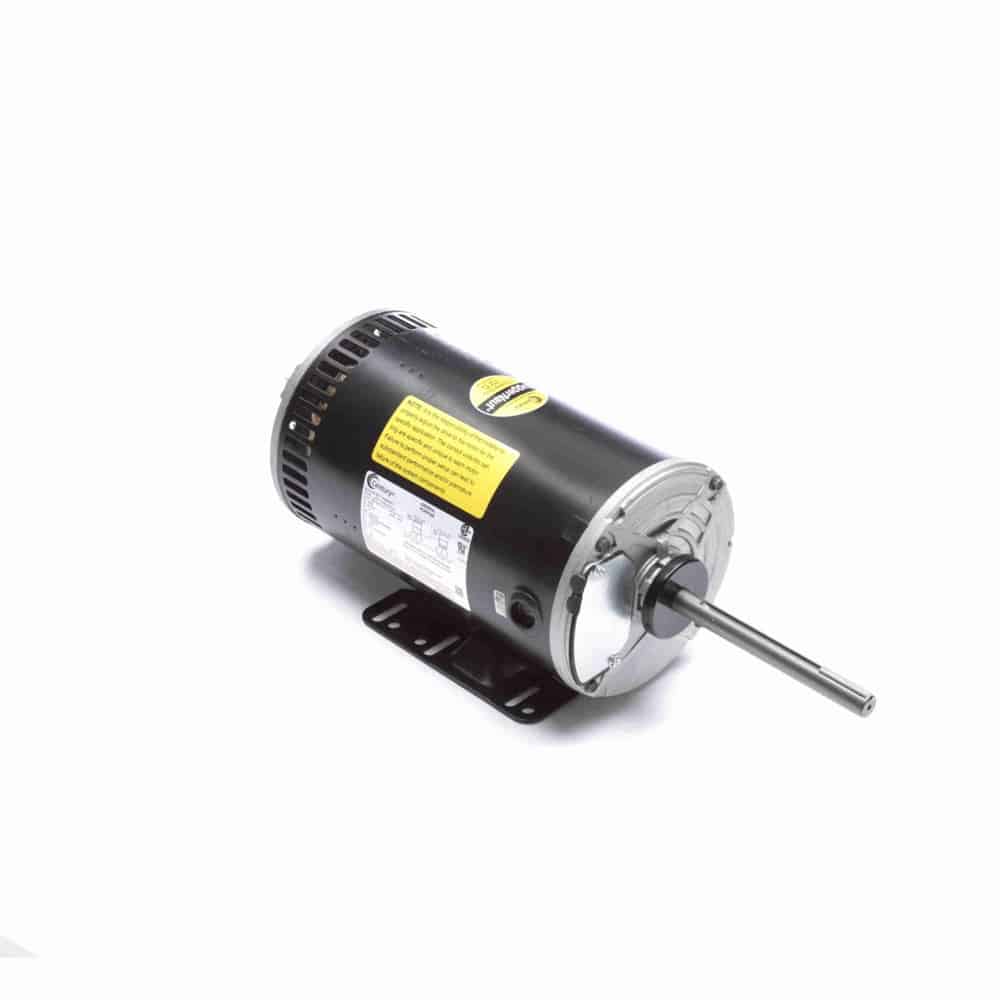

1.5HP 3PH 56HZ OAO 900 208-230/460V CF
Mfr # H1054RBV1 | Wright’s # CEN H1054RBV1
1.5HP Condenser Fan Motor, 3 Phase, 56HZ Frame, 850 RPM, 1 Speed, Three Phase, 208-230/460V, OAO Enclosure
$645.97
Product Information
Brand
Century
Sub-Brand
JuggerNaut®
Mfr #
H1054RBV1
Wright's #
CEN H1054RBV1
Country of Origin
MEX
Specifications
C Dim
18.52"
Electrical Type
Three Phase
Enclosure
OAO
Full Load Efficiency
74
Frame
56HZ
Frequency
60 Hz
HP
1.5 HP
HP2
1.5 HP
Insulation Class
F
kW
1.1kW
Material
Rolled Steel
Max Ambient
70°C
Number of Poles
8
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
3
Rated Current
6.6-6.6/3.3
Rated Voltage
208-230/460
Rotation
Reversible
RPM
850
Service Factor
1
Shaft Diameter
0.625"
Speed
900
Starting Method
