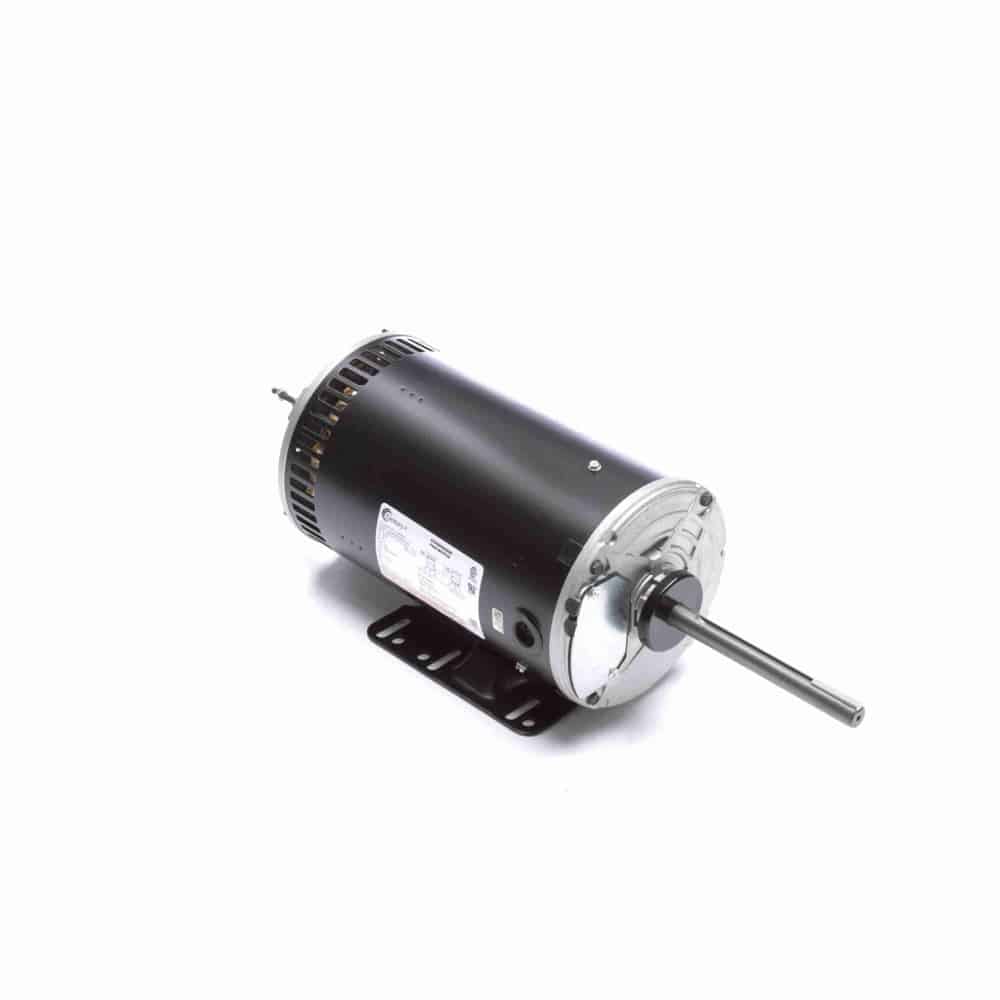

1.5HP 3PH 56HZ OAO 850 190/380&230/460V CF
Century

1.5HP 3PH 56HZ OAO 850 190/380&230/460V CF

Mfr # H1054AV1 | Wright’s # CEN H1054AV1

1.5&1HP Condenser Fan Motor, 3 Phase, 56HZ Frame, 850 RPM, 1 Speed, Three Phase, 190/380&230/460V, OAO Enclosure

$645.97

Product Information

Brand Century
Sub-Brand JuggerNaut®
Mfr # H1054AV1
Wright's # CEN H1054AV1
Country of Origin MEX

Specifications

C Dim 18.85"
Electrical Type Three Phase
Enclosure OAO
Full Load Efficiency 74
Frame 56HZ
Frequency 60/50 Hz
HP 1.5 HP
HP2 1.5&1 HP
Insulation Class F
kW 1.1kW
Material Rolled Steel
Max Ambient 70°C
Number of Poles 8
Number of Speeds 1
Overload Protection Thermally Protected
Phase 3
Rated Current 6.6/3.3&6.0/3.0
Rated Voltage 190/380&230/460
Rotation Reversible
RPM 850
Service Factor 1
Shaft Diameter 0.625"
Speed 850&705
Starting Method

Description

Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.

Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.

1.5&1HP Condenser Fan Motor, 3 Phase, 56HZ Frame, 850 RPM, 1 Speed, Three Phase, 190/380&230/460V, OAO Enclosure
