Century

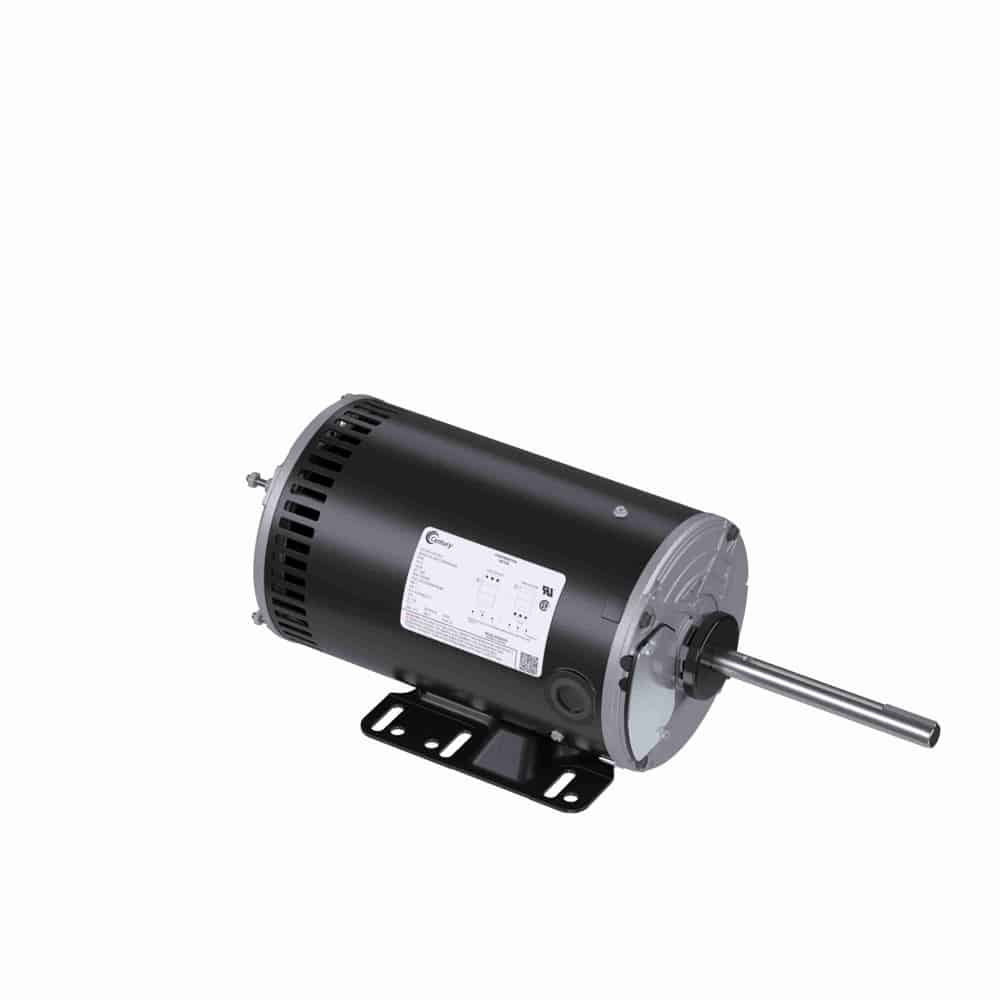

1.5HP 3PH 56HZ OAO 1200 190/380&230/460V CF
Mfr # H1051AV1 | Wright’s # CEN H1051AV1
1.5&1HP Condenser Fan Motor, 3 Phase, 56HZ Frame, 1140 RPM, 1 Speed, Squirrel Cage Induction Run, 190/380&230/460V, OAO Enclosure
$496.72
Product Information
Brand
Century
Sub-Brand
JuggerNaut®
Mfr #
H1051AV1
Wright's #
CEN H1051AV1
Country of Origin
MEX
Specifications
Electrical Type
Squirrel Cage Induction Run
Enclosure
OAO
Frame
56HZ
Frequency
60/50 Hz
HP
1.5 HP
HP2
1.5&1 HP
Insulation Class
F
kW
1.1kW
Material
Rolled Steel
Max Ambient
70°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
3
Rated Current
6/3&5.4/2.7
Rated Voltage
190/380&230/460
Rotation
Reversible
RPM
1140
Service Factor
1
Shaft Diameter
0.625"
Speed
1200/950
Starting Method
