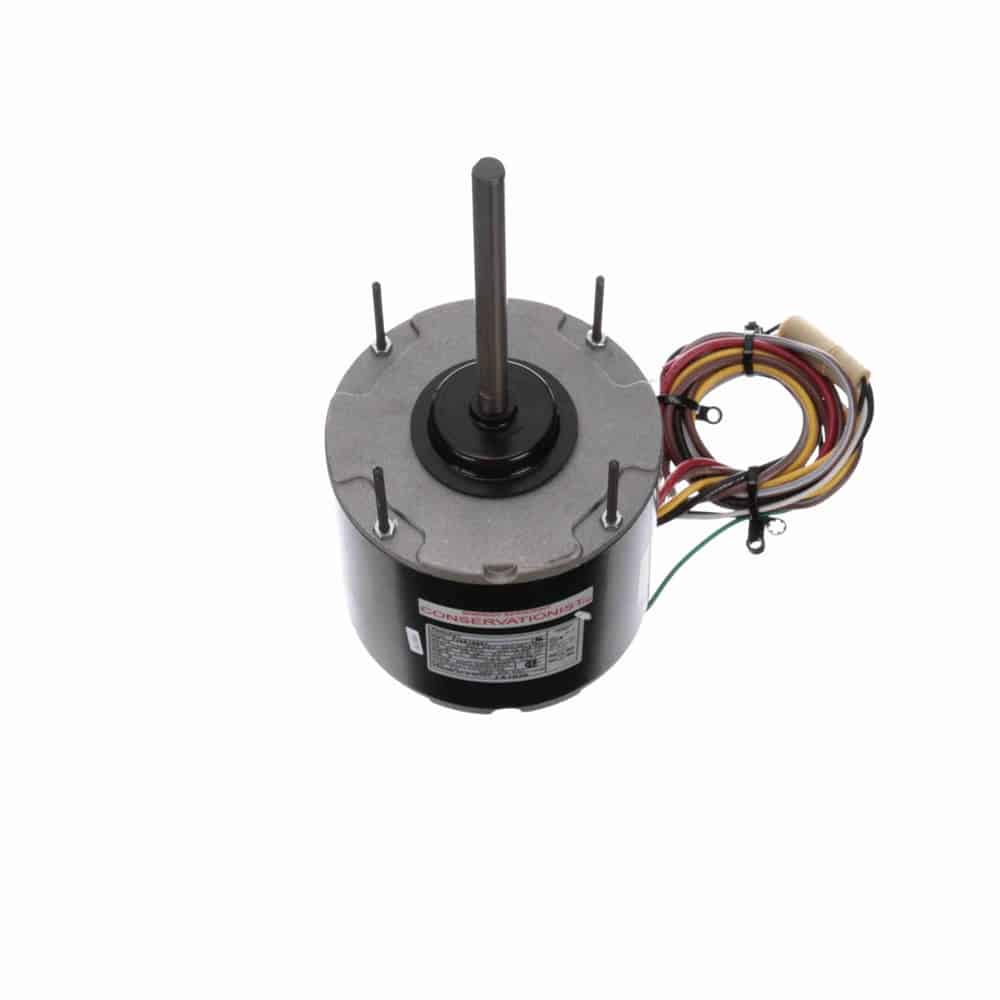

1/3HP PSC 48Y TE 1075 208-230V 5uF CF
Century

1/3HP PSC 48Y TE 1075 208-230V 5uF CF

Mfr # FS1036S | Wright’s # CEN FS1036S

1/3HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure

Contact Us For Pricing

Product Information

Brand Century
Mfr # FS1036S
Wright's # CEN FS1036S

Specifications

C Dim 11.55"
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
Max Ambient 60°C
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 3
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Speed 1075
Starting Method

Description

Condenser Fan – Heat Pump – Refrigeration Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Enclosed, Except Open Lead End End-Frame Air Over
Class B Insulation, 60°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Double FlatЃ” Leads
Extended Studs Shaft End, Hex Mounting Hub on Both Ends for Resilient Base Mounting (Resilient Rings Included), Belly Band Mount (Belly Band Not Included)

1/3HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure

Documents

Data Sheet
