1/4HP PSC 48Y TE 1075 208-230V 5uF CF
Century

1/4HP PSC 48Y TE 1075 208-230V 5uF CF

Mfr # FS1026S | Wright’s # CEN FS1026S

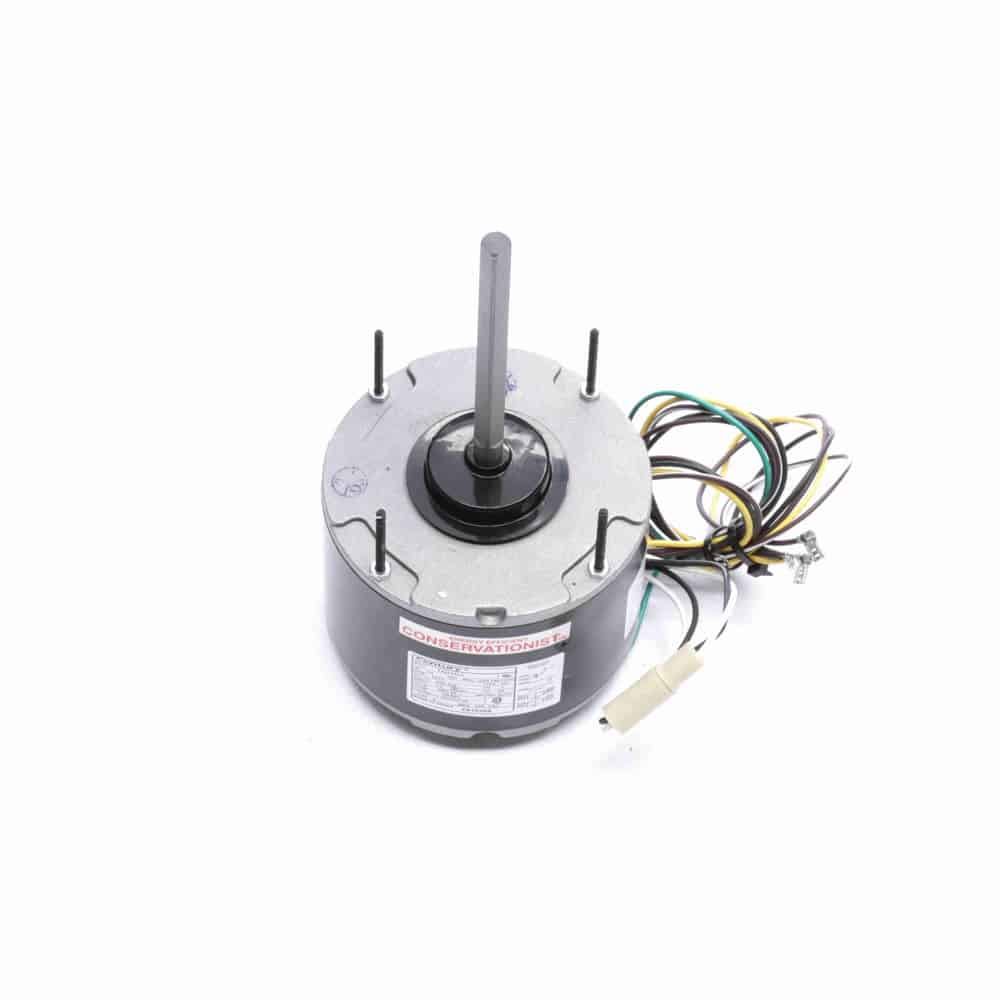

1/4HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure

Contact Us For Pricing

Product Information

Brand Century
Mfr # FS1026S
Wright's # CEN FS1026S

Specifications

C Dim 10.93"
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
Max Ambient 60°C
Number of Poles 8
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 1.8
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Speed 1075
Starting Method

Description

Condenser Fan – Heat Pump – Refrigeration Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Enclosed, Except Open Lead End End-Frame Air Over
Class B Insulation, 60°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Double FlatЃ” Leads
Extended Studs Shaft End, Hex Mounting Hub on Both Ends for Resilient Base Mounting (Resilient Rings Not Included), Belly Band Mount (Belly Band Not Included)

1/4HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure

Documents

Data Sheet
