Century

1/4HP PSC 48Y TE 1625 208-230V 5uF CF

Name: 1/4HP PSC 48Y TE 1625 208-230V 5uF CF
Brand: Century
SKU: 30300
Price: 271.58 USD
Availability: InStock

Mfr # FS1024S | Wright’s # CEN FS1024S

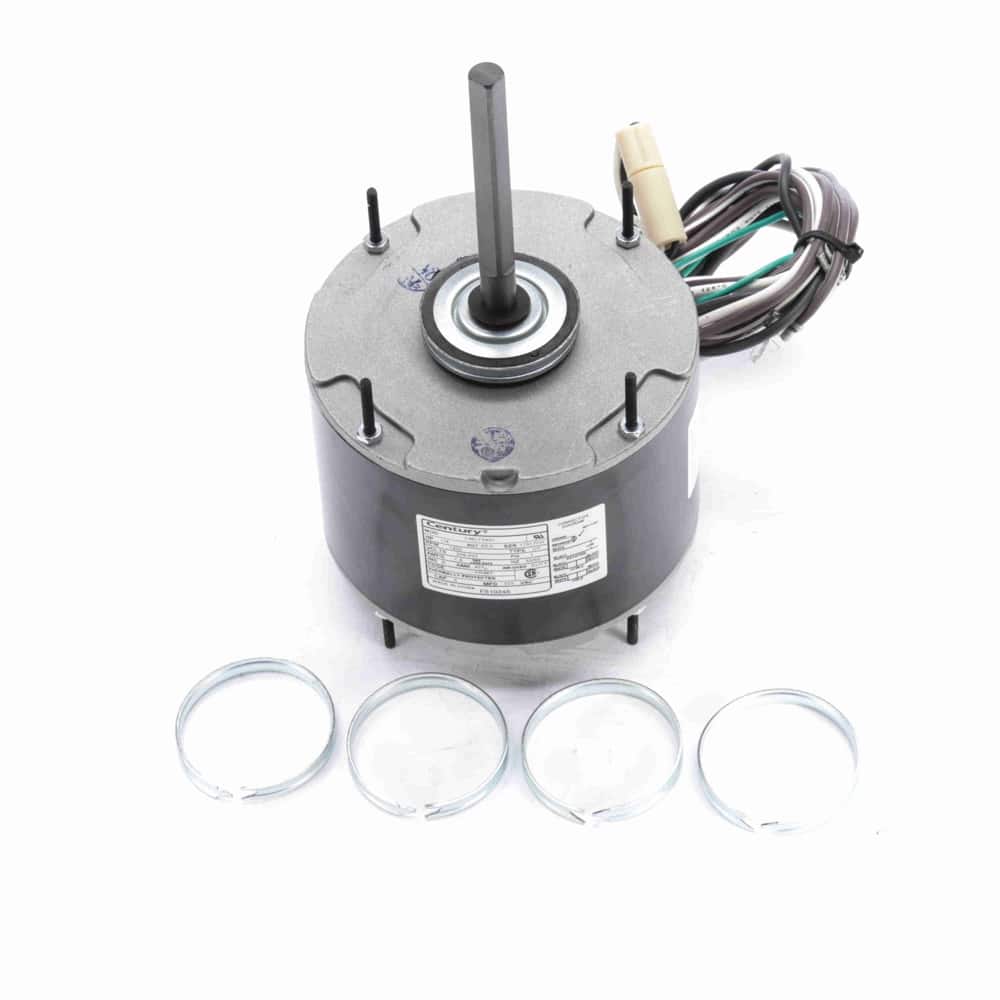

1/4HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure

Product Information

Brand Century

Mfr # FS1024S

Wright's # CEN FS1024S

Country of Origin MEX

Specifications

C Dim 9.42"

Electrical Type Permanent Split Capacitor

Enclosure TEAO

Frame 48Y

Frequency 50 Hz

HP 0.25 HP

HP2 1/4 HP

Insulation Class B

kW 0.19kW

Material Rolled Steel

Max Ambient 40°C

Number of Poles 4

Number of Speeds 1

Overload Protection Automatic

Phase 1

Rated Current 1.4

Rated Voltage 208-230

Rotation Reversible

RPM 1625

Service Factor 1

Shaft Diameter 0.5"

Speed 1625

Starting Method

Description

Condenser Fan – Heat Pump – Refrigeration Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Enclosed, Except Open Lead End End-Frame Air Over
Class B Insulation, 40°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2″ Diameter Shaft with Double FlatЌ” Leads
Extended Studs Shaft End and Lead End, Resilient Ring Mounting, Belly Band Mount (Belly Band Not Included)

1/4HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure

Documents

Data Sheet

1/4HP PSC 48Y TE 1625 208-230V 5uF CF
