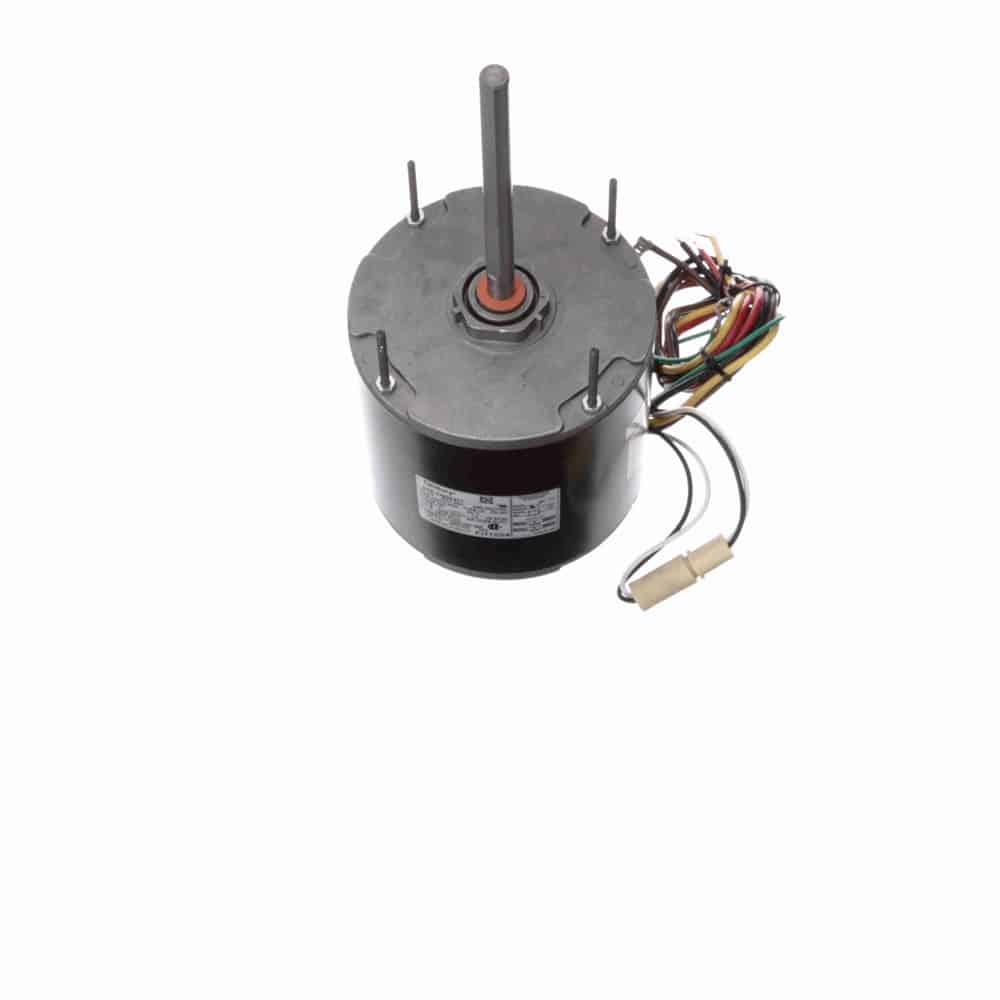

1/2HP PSC 48Y TE 2spd 1625 460V 5uF CF
Century

1/2HP PSC 48Y TE 2spd 1625 460V 5uF CF

Mfr # FH1054 | Wright’s # CEN FH1054

1/2HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1625 RPM, 2 Speed, Permanent Split Capacitor, 460V, TEAO Enclosure

Contact Us For Pricing

Product Information

Brand Century
Mfr # FH1054
Wright's # CEN FH1054
Country of Origin IND

Specifications

C Dim 12.24"
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
Max Ambient 60°C
Number of Poles 4
Number of Speeds 2
Overload Protection Automatic
Phase 1
Rated Current 1.4
Rated Voltage 460
Rotation Reversible
RPM 1625
Service Factor 1
Shaft Diameter 0.5"
Speed 1625
Starting Method

Description

Condenser Fan – Heat Pump – Refrigeration Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Enclosed, Except Open Lead End End-Frame Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЃ” Leads
Extended Studs Shaft End, Hex Mounting Hub on Both Ends for Resilient Base Mounting (Resilient Rings Not Included), Belly Band Mount (Belly Band Not Included)

1/2HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1625 RPM, 2 Speed, Permanent Split Capacitor, 460V, TEAO Enclosure
