Century

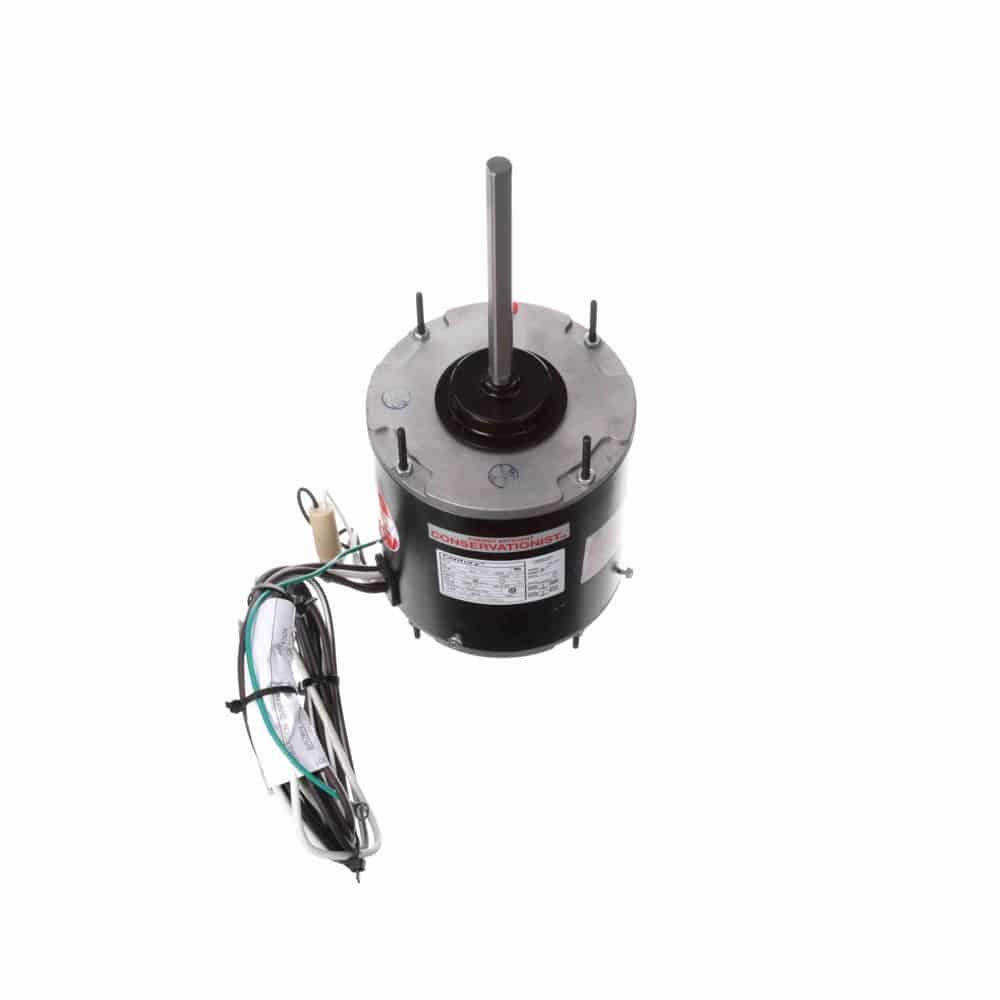

3/4HP PSC 5.6″ TE 1075 230V 15uF CF
Mfr # FE1076SU | Wright’s # CEN FE1076SU
3/4HP Condenser Fan Motor, 1 Phase, 48 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 230V, TEAO Enclosure
$200.48
Product Information
Brand
Century
Sub-Brand
HEATMASTER® ULTRA
Mfr #
FE1076SU
Wright's #
CEN FE1076SU
Country of Origin
IND
Specifications
C Dim
12.99"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Full Load Efficiency
67.2
Frame
48
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
F
kW
0.56kW
Material
Rolled Steel
Max Ambient
80°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
5.1
Rated Voltage
230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
HeatMaster Ultra – Condenser Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class F Insulation, 80°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Double FlatИ” Leads
Extended Studs Shaft End, Mounting Holes in Shell, 4.33BC Lead End End-Frame, Belly Band Mount (Belly Band Not Included)
3/4HP Condenser Fan Motor, 1 Phase, 48 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 230V, TEAO Enclosure
