Century
1/2HP PSC 5.6″ TE 1075 208-230V 10uF CF
Mfr # FE1056SU | Wright’s # CEN FE1056SU

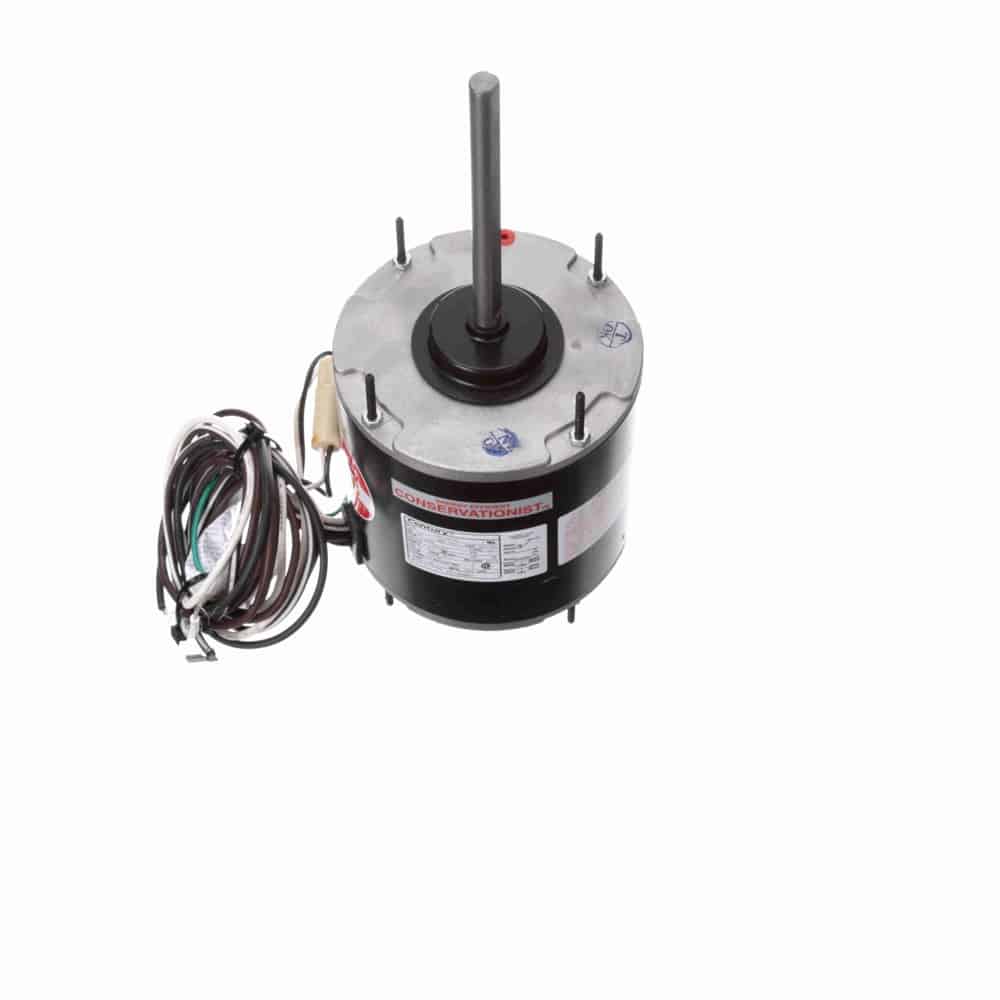

1/2HP Condenser Fan Motor, 1 Phase, 48 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
$169.65
Product Information
Brand
Century
Sub-Brand
HEATMASTER® ULTRA
Mfr #
FE1056SU
Wright's #
CEN FE1056SU
Country of Origin
IND
Specifications
C Dim
12.74"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Full Load Efficiency
69.1
Frame
48
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
F
kW
0.37kW
Material
Rolled Steel
Max Ambient
80°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
4
Rated Voltage
208-230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
HeatMaster Ultra – Condenser Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class F Insulation, 80°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Double FlatИ” Leads
Extended Studs Shaft End, Mounting Holes in Shell, 4.33BC Lead End End-Frame, Belly Band Mount (Belly Band Not Included)
1/2HP Condenser Fan Motor, 1 Phase, 48 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
