Century
1/4HP PSC 5.6″ TE 825 230V 5uF CF
Mfr # FE1028SU | Wright’s # CEN FE1028SU

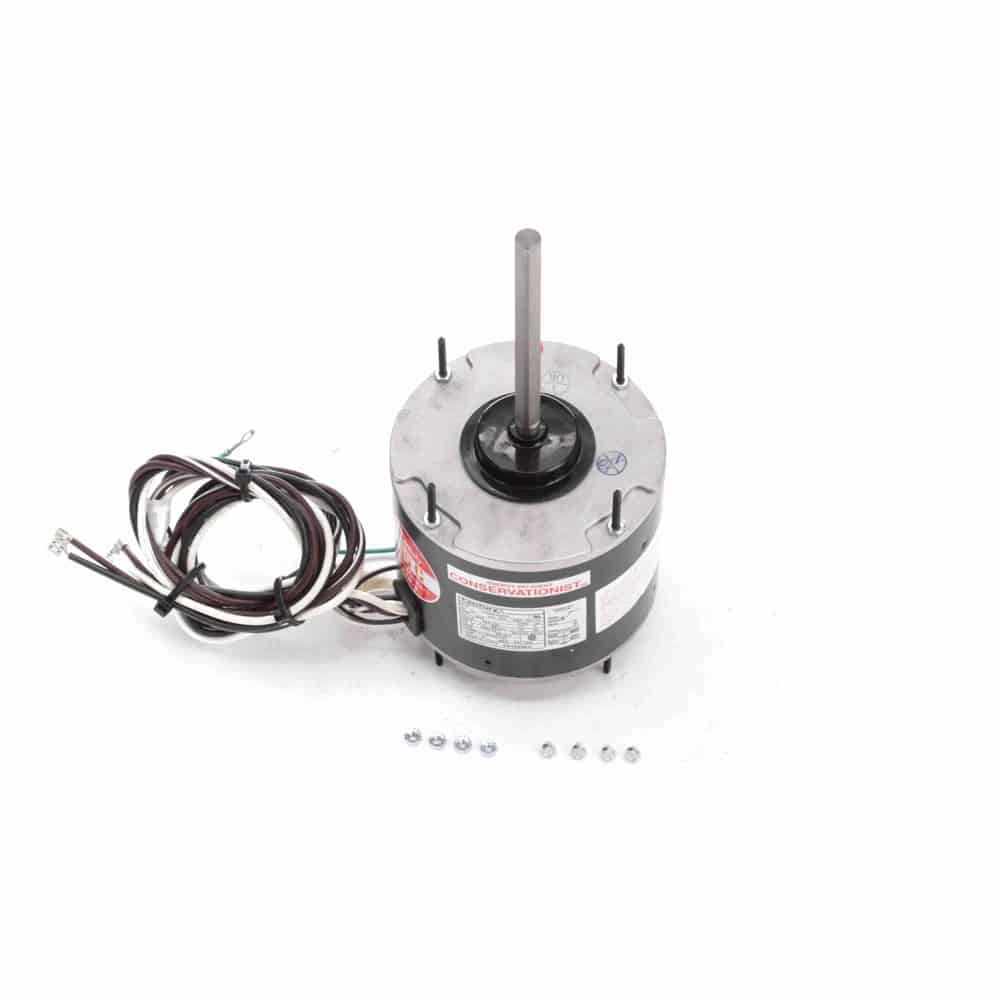

1/4HP Condenser Fan Motor, 1 Phase, 48 Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 230V, TEAO Enclosure
$216.92
Product Information
Brand
Century
Sub-Brand
HEATMASTER® ULTRA
Mfr #
FE1028SU
Wright's #
CEN FE1028SU
Country of Origin
IND
Specifications
C Dim
12"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
F
kW
0.19kW
Material
Rolled Steel
Max Ambient
80°C
Number of Poles
8
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.5
Rated Voltage
230
Rotation
Reversible
RPM
825
Service Factor
1
Shaft Diameter
0.5"
Speed
825
Starting Method
Description
HeatMaster Ultra – Condenser Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class F Insulation, 80°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Double FlatИ” Leads
Extended Studs Shaft End, Mounting Holes in Shell, 4.33BC Lead End End-Frame, Belly Band Mount (Belly Band Not Included)
1/4HP Condenser Fan Motor, 1 Phase, 48 Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 230V, TEAO Enclosure
