Century

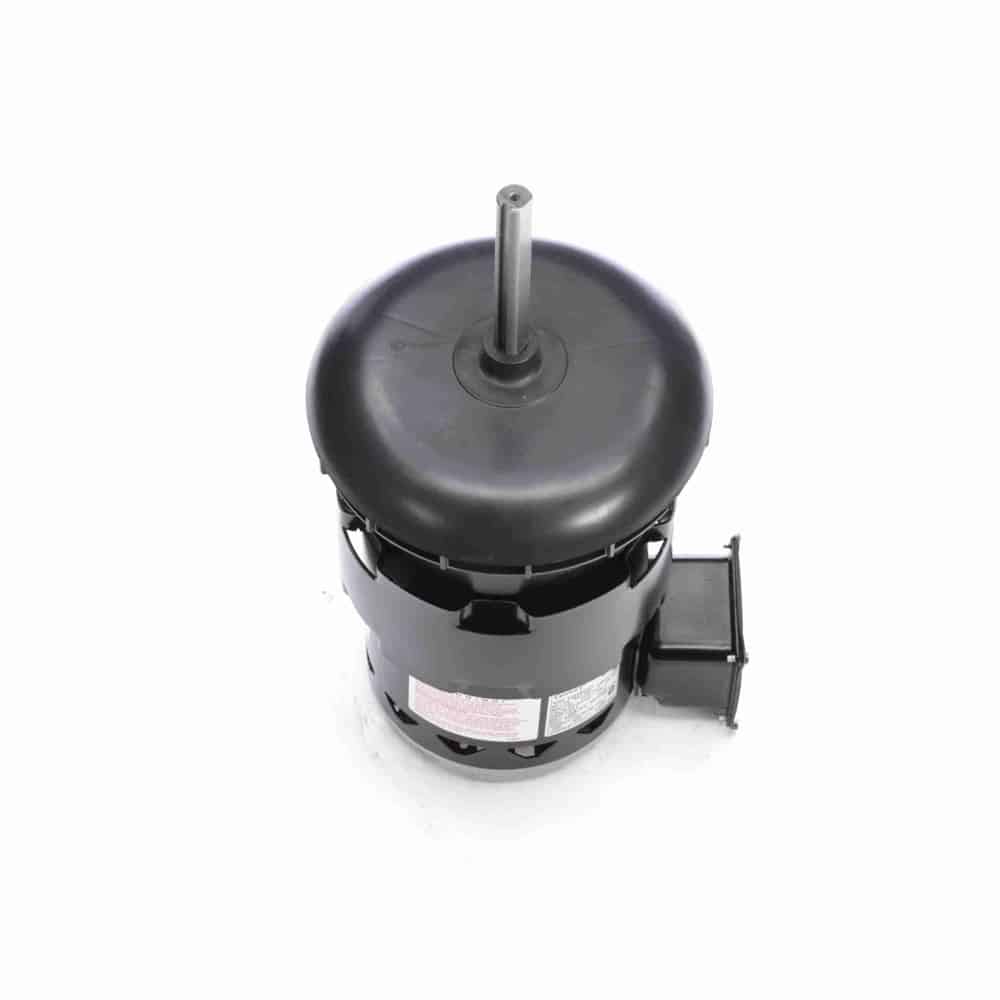

1.5HP 3PH 48Y ODP 1120 200-230/460V CF
Mfr # FC3156F | Wright’s # CEN FC3156F
1.5HP Condenser Fan Motor, 3 Phase, 48Y Frame, 1120 RPM, 1 Speed, Three Phase, 200-230/460V, ODP Enclosure
$816.66
Product Information
Brand Century
Sub-Brand HEATMASTER®
Mfr # FC3156F
Wright's # CEN FC3156F
Country of Origin MEX
Specifications
C Dim 15.44"
Electrical Type Three Phase
Enclosure ODP
Frame 48Y
Frequency 60 Hz
HP 1.5 HP
HP2 1.5 HP
Insulation Class F
kW 1.1kW
Material Rolled Steel
Max Ambient 70°C
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 3
Rated Current 5.8/2.9
Rated Voltage 200-230/460
Rotation Reversible
RPM 1120
Service Factor 1
Shaft Diameter 0.625"
Speed 1120
Starting Method
Description
HeatMaster – Commercial Condenser Fan Motor – Fan Canopy
5.6″ Diameter – 48 Frame
Polyphase
Thermally Protected
Open Air Over
Class F Insulation, 70°C Ambient
Ball Bearing
5/8″ Diameter Shaft with Flat and Keyway
Conduit Box
Vertical Shaft Up, Belly Band Mount (Belly Band Not Included)
1.5HP Condenser Fan Motor, 3 Phase, 48Y Frame, 1120 RPM, 1 Speed, Three Phase, 200-230/460V, ODP Enclosure
