Century

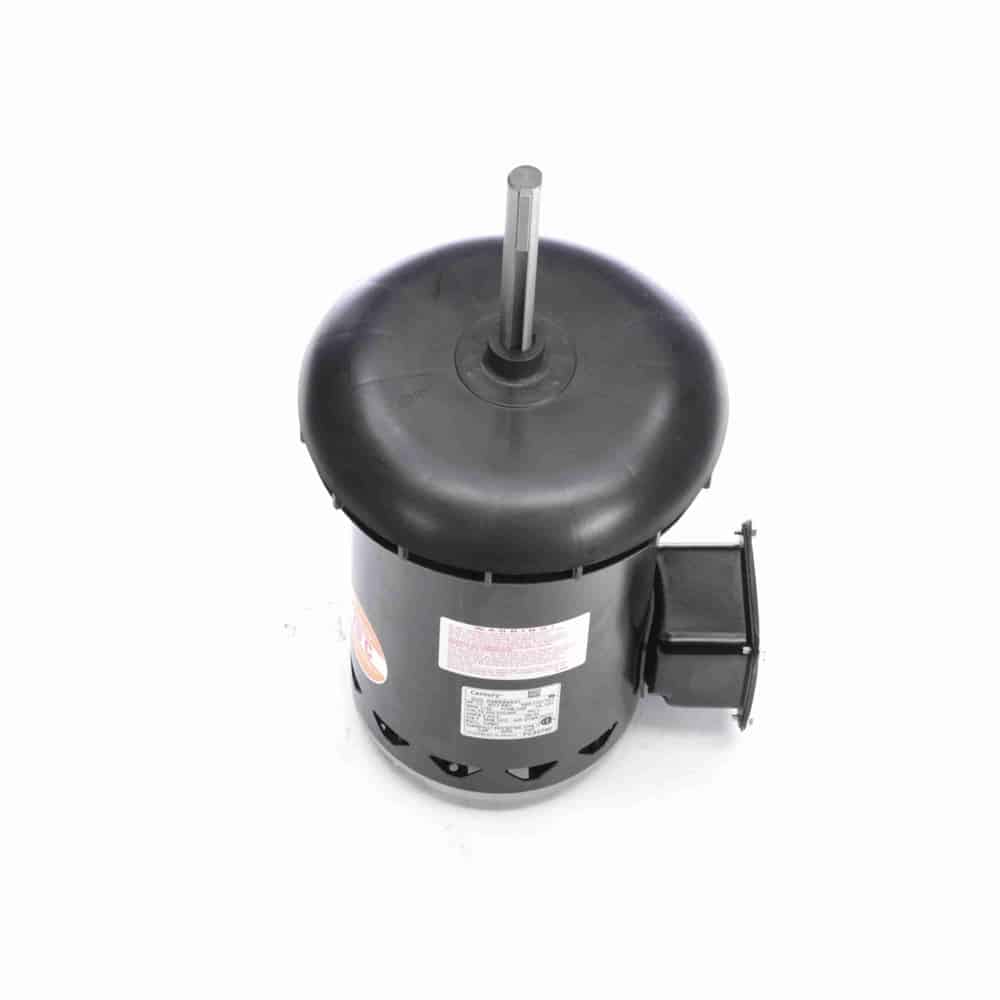

3/4HP 3PH 48Y ODP 1140 200-230/460V CF
Mfr # FC3076F | Wright’s # CEN FC3076F
3/4HP Condenser Fan Motor, 3 Phase, 48Y Frame, 1140 RPM, 1 Speed, Three Phase, 200-230/460V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Sub-Brand
HEATMASTER®
Mfr #
FC3076F
Wright's #
CEN FC3076F
Country of Origin
MEX
Specifications
C Dim
14.99"
Electrical Type
Three Phase
Enclosure
ODP
Frame
48Y
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
F
kW
0.56kW
Material
Rolled Steel
Max Ambient
70°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
3
Rated Current
4.0/2.0
Rated Voltage
200-230/460
Rotation
Reversible
RPM
1140
Service Factor
1
Shaft Diameter
0.625"
Speed
1140
Starting Method
Description
HeatMaster – Commercial Condenser Fan Motor – Fan Canopy
5.6″ Diameter – 48 Frame
Polyphase
Thermally Protected
Open Air Over
Class F Insulation, 70°C Ambient
Ball Bearing
5/8″ Diameter Shaft with Flat and Keyway
Conduit Box
Vertical Shaft Up, Belly Band Mount (Belly Band Not Included)
3/4HP Condenser Fan Motor, 3 Phase, 48Y Frame, 1140 RPM, 1 Speed, Three Phase, 200-230/460V, ODP Enclosure
