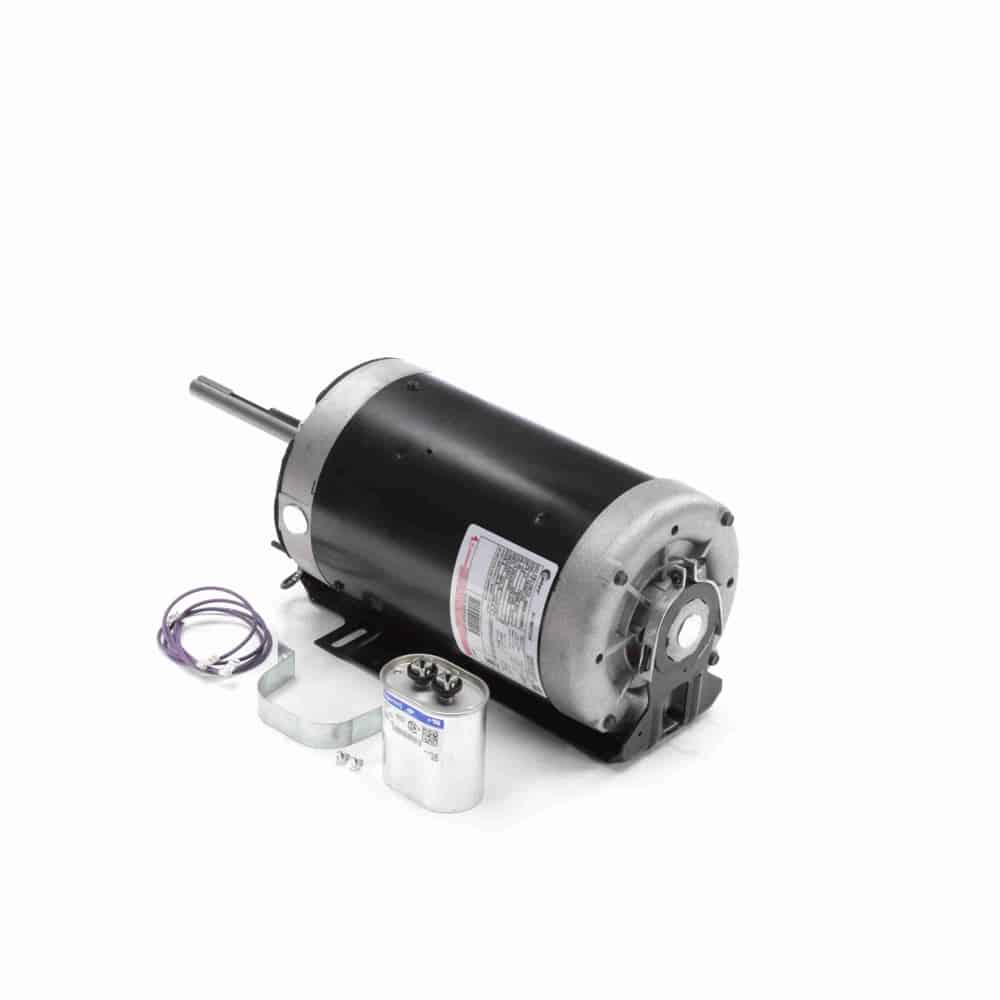

1.5HP 1PH 56Y TE 1075 208-230/460V CF
Century

1.5HP 1PH 56Y TE 1075 208-230/460V CF

Mfr # FB1156TE | Wright’s # CEN FB1156TE

1.5HP Condenser Fan Motor, 1 Phase, 56Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, Single Or Dual Voltage, 208-230/460V, TEAO Enclosure

$697.18

Product Information

Brand Century
Mfr # FB1156TE
Wright's # CEN FB1156TE
Country of Origin MEX

Specifications

C Dim 18.06"
Electrical Type Permanent Split Capacitor, Single Or Dual Voltage
Enclosure TEAO
Frame 56Y
Frequency 60 Hz
HP 1.5 HP
HP2 1.5 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 6
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 6.6/3.3
Rated Voltage 208-230/460
Rotation Reversible Clockwise
RPM 1075
Service Factor 1
Shaft Diameter 0.625"
Speed 1075
Starting Method

Description

Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.

1.5HP Condenser Fan Motor, 1 Phase, 56Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, Single Or Dual Voltage, 208-230/460V, TEAO Enclosure

Documents

Data Sheet
