Century

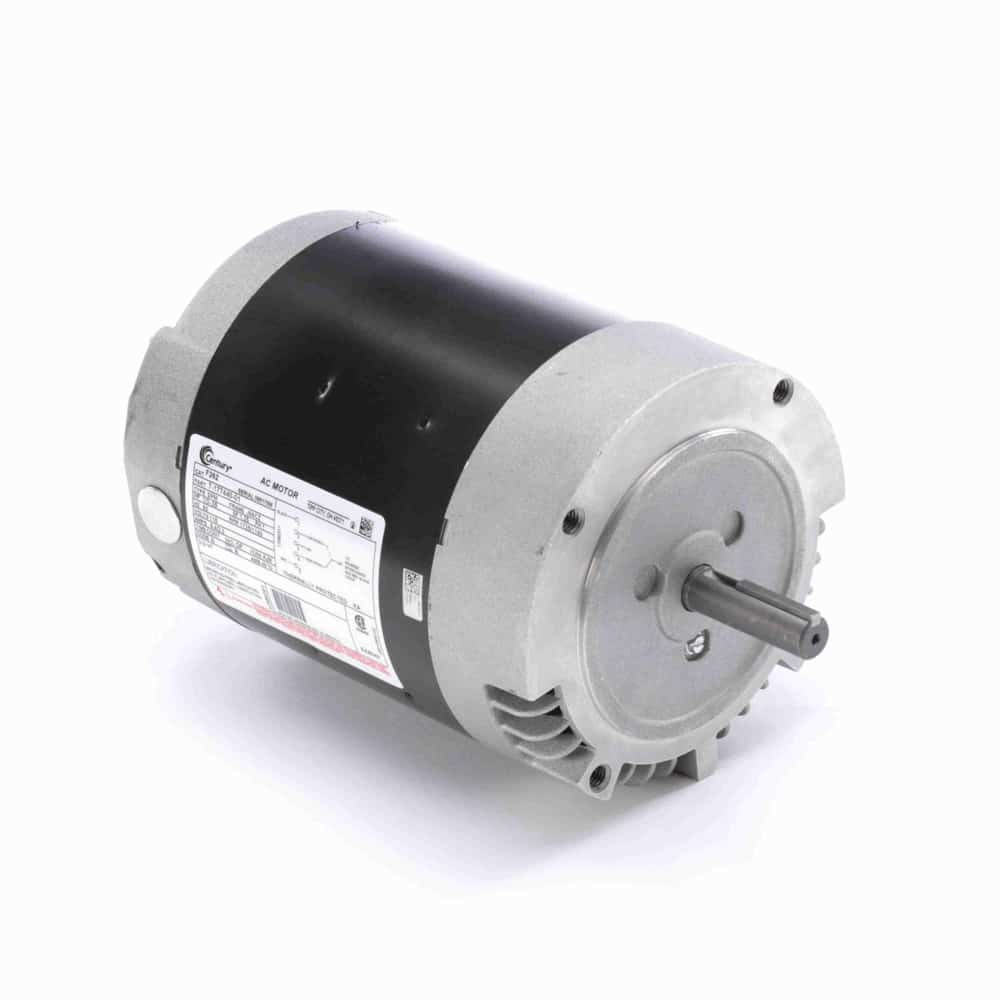

1/3HP 1PH 56CZ ODP 1725 115V
Mfr # F262 | Wright’s # CEN F262
1/3-.09HP Ventilation Motor, 1 Phase, 56CZ Frame, 1725 RPM, 1 Speed, Split Phase, Induction Run, Multi-Speed, 115V, ODP Enclosure
$535.03
Product Information
Brand
Century
Mfr #
F262
Wright's #
CEN F262
Country of Origin
MEX
Specifications
C Dim
11.25"
Electrical Type
Split Phase, Induction Run, Multi-Speed
Enclosure
ODP
Frame
56CZ
Frequency
60 Hz
HP
0.33 HP
HP2
1/3-.09 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4/6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
5.4/2.3
Rated Voltage
115
Rotation
Reversible Counterclockwise
RPM
1725
Service Factor
1.35
Shaft Diameter
0.625"
Speed
1725/1140
Starting Method
Description
2-1/4 x 5/8 shaft dimensions
Single speed
1/3-.09HP Ventilation Motor, 1 Phase, 56CZ Frame, 1725 RPM, 1 Speed, Split Phase, Induction Run, Multi-Speed, 115V, ODP Enclosure
