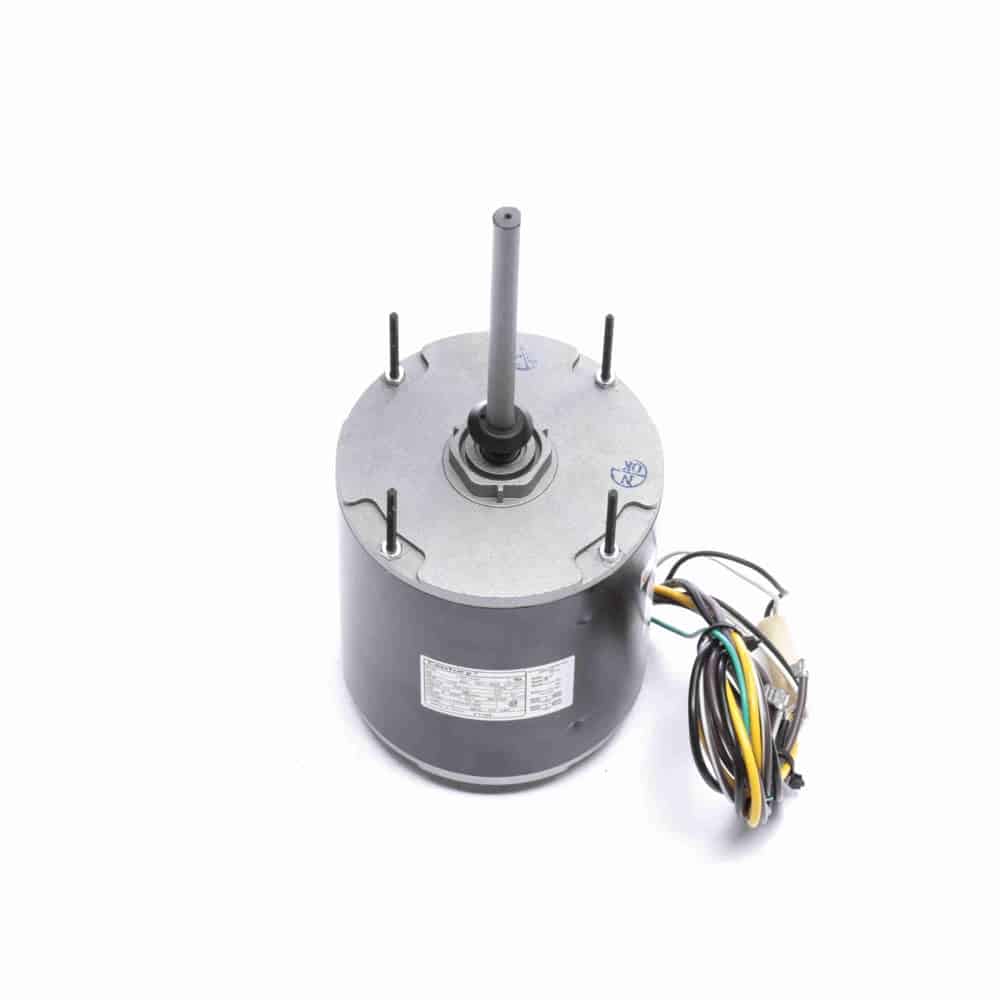

1HP PSC 48Y TE 1075 208-230V 15uF CF
Century

1HP PSC 48Y TE 1075 208-230V 15uF CF

Mfr # F1106 | Wright’s # CEN F1106

1HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure

Contact Us For Pricing

Product Information

Brand Century
Mfr # F1106
Wright's # CEN F1106
Country of Origin MEX

Specifications

C Dim 12.99"
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Full Load Efficiency 68.8
Frame 48Y
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
Max Ambient 60°C
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 5.4
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Speed 1075
Starting Method

Description

Condenser Fan – Heat Pump – Refrigeration Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Enclosed, Except Open Lead End End-Frame Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЃ” Leads
Extended Studs Shaft End, Hex Mounting Hub on Both Ends for Resilient Base Mounting (Resilient Rings Not Included), Belly Band Mount (Belly Band Not Included)

1HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
