Century

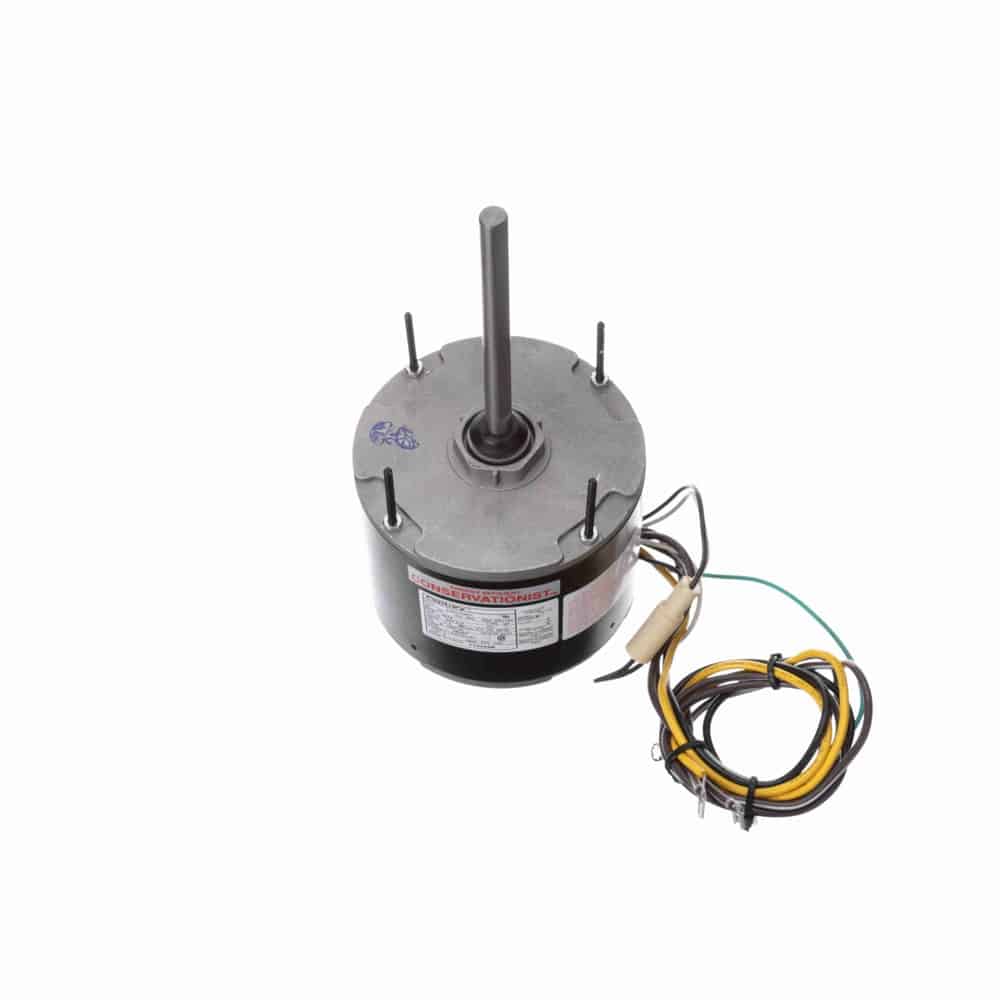

1/4HP PSC 48Y ODP 1075 208-230V 5uF CF

Name: 1/4HP PSC 48Y ODP 1075 208-230V 5uF CF
Brand: Century
SKU: 30117
Price: 108.05 USD
Availability: OutOfStock

Mfr # F1026SB | Wright’s # CEN F1026SB

1/4HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure

Product Information

Brand Century

Mfr # F1026SB

Wright's # CEN F1026SB

Specifications

C Dim 11.23"

Electrical Type Permanent Split Capacitor

Enclosure ODP

Frame 48Y

Frequency 60 Hz

HP 0.25 HP

HP2 1/4 HP

Insulation Class B

kW 0.19kW

Material Rolled Steel

Max Ambient 60°C

Number of Poles 6

Number of Speeds 1

Overload Protection Automatic

Phase 1

Rated Current 1.4

Rated Voltage 208-230

Rotation Reversible

RPM 1075

Service Factor 1

Shaft Diameter 0.5"

Speed 1075

Starting Method

Description

Condenser Fan – Heat Pump – Refrigeration Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Enclosed, Except Open Lead End End-Frame Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЃ” Leads
Extended Studs Shaft End, Hex Mounting Hub on Both Ends for Resilient Base Mounting (Resilient Rings Not Included), Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)

1/4HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure

Documents

Data Sheet

1/4HP PSC 48Y ODP 1075 208-230V 5uF CF
